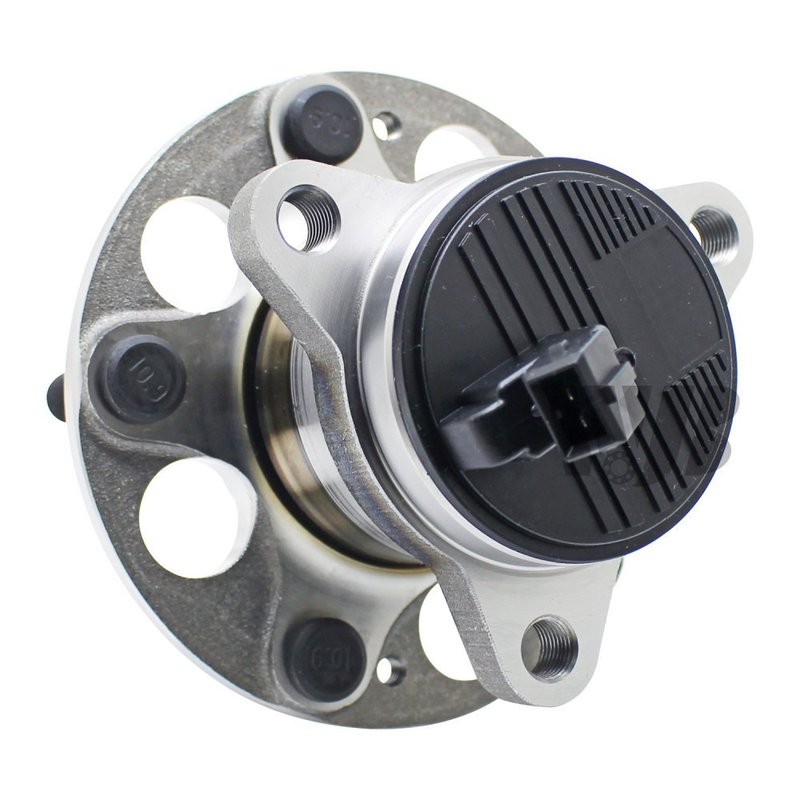

InMotion WA512635 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Hyundai and Kia

The InMotion WA512635 is a rear wheel bearing and hub assembly built for specific Hyundai and Kia applications. It is engineered from OE data and measurements for direct replacement fitment, with the precision needed for consistent wheel support, braking alignment, and sensor integration.

Compatible With 2017-2022 Hyundai Ioniq rear, 2017-2022 Kia Niro rear, and 2017-2020 Hyundai Elantra rear, this assembly is a fit-focused solution for standard grade vehicles. The WA512635 also includes an ABS sensor, helping maintain proper wheel speed signal function in the rear hub location.

Key Features

• Part number: WA512635
• Rear wheel bearing and hub assembly
• Includes anti-lock brake sensor
• 5 wheel studs for wheel mounting
• 3 flange bolt holes
• Bolt circle diameter: 114.3 mm
• Flange diameter: 139.08 mm
• Flange offset: 60.96 mm
• Wheel pilot diameter: 66.81 mm
• Brake pilot diameter: 75.96 mm
• Hub pilot diameter: 73.9 mm

Detailed Description

InMotion manufactures this hub assembly using high-precision processes and strict quality-control standards to match the original part’s fit and function. The WA512635 is built for rear applications and uses OE-based dimensions to support proper installation on the designated Hyundai Ioniq, Kia Niro, and Hyundai Elantra model years listed below. This makes it a practical OE-style replacement for drivers servicing rear hub wear, bearing noise, or ABS-related hub concerns.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2017-2022 Hyundai Ioniq, rear, Standard Grade
• Fits 2017-2022 Kia Niro, rear, Standard Grade
• Fits 2017-2020 Hyundai Elantra, rear, Standard Grade

Common Issues This Part Can Address

• Rear wheel bearing noise or humming
• Excessive play or looseness at the wheel hub
• ABS warning light concerns related to the rear hub sensor
• Uneven wheel rotation caused by hub wear
• Brake or wheel mounting issues tied to hub damage

Installation Notes and Tips

Verify rear fitment by year, make, model, and standard grade before ordering. Confirm the bolt circle, stud count, and pilot dimensions against the original hub assembly to ensure correct installation. Because this assembly includes an ABS sensor, inspect the connector and wiring condition during replacement and clear any stored fault codes after installation if required by the vehicle.

Quality Assurance

InMotion builds this hub assembly to OE data and measurement standards with application-specific manufacturing controls for fit, performance, and service life. The WA512635 is intended as a direct replacement for the original rear hub assembly on the listed Hyundai and Kia vehicles.
