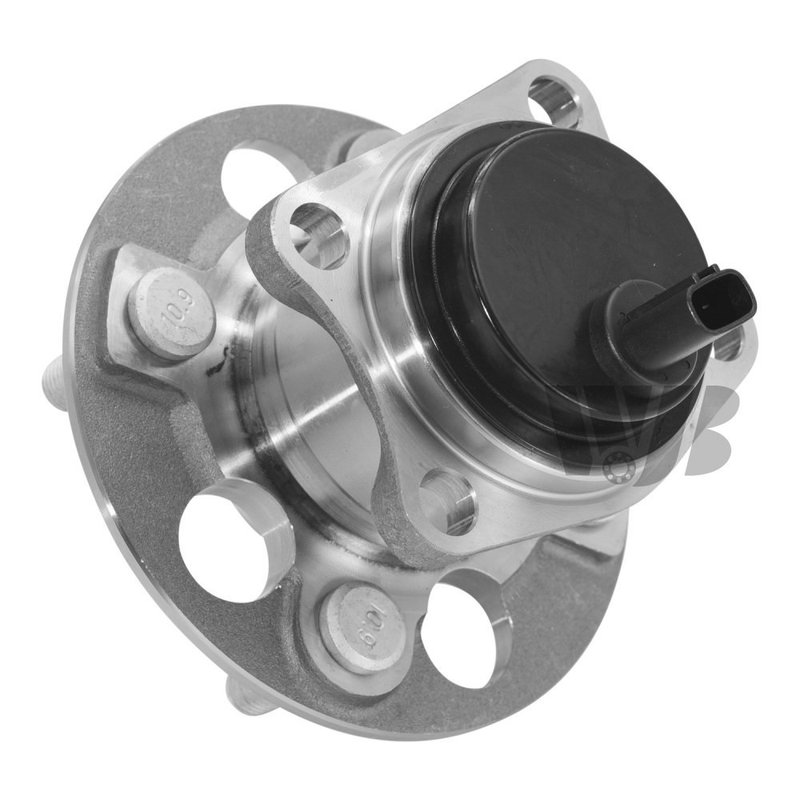

InMotion WA512636 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing and Hub Assembly for Toyota Yaris

Built for 2015-2018 Toyota Yaris rear applications, this wheel bearing and hub assembly is engineered as a direct replacement for the original part. InMotion WA512636 is manufactured to OE data and measurements for accurate fitment, stable wheel mounting, and consistent service life.

Key Features

• Fits 2015-2018 Toyota Yaris, rear
• Direct replacement wheel bearing and hub assembly
• 4 flange bolt holes and 4 wheel studs
• ABS sensor included
• Bolt circle diameter: 100.0 mm
• Wheel pilot diameter: 53.99 mm
• Brake pilot diameter: 54.97 mm
• Hub pilot diameter: 73.87 mm
• Flange diameter: 134.91 mm with 60.01 mm offset
• Part number: WA512636

Product Details

InMotion WA512636 is a rear wheel bearing and hub assembly for the Toyota Yaris, designed for standard grade applications from 2015 through 2018. It is built with precision manufacturing and strict quality-control standards, using OE reference data to match the original dimensions and mounting points. The integrated ABS sensor helps maintain proper wheel speed signal function, while the hub and flange measurements support correct wheel and brake component alignment.

This part cross-references no listed interchange numbers in the provided data. For buyers searching for a rear wheel hub assembly for 2015-2018 Toyota Yaris or an OE-style replacement wheel bearing hub assembly, WA512636 provides the specified fitment and dimensions.

Common Reasons for Replacement

• Wheel bearing noise from the rear hub area
• Excessive play or looseness at the wheel
• ABS warning light related to hub sensor failure
• Uneven wheel mounting or hub wear
• Brake or wheel fitment issues caused by a worn hub assembly

Installation Notes and Tips

Confirm rear fitment on 2015-2018 Toyota Yaris before installation and verify the bolt circle, pilot diameters, and stud count against the original part. Inspect the mating surfaces, axle area, and ABS connector condition during replacement. Proper torque procedures and clean mounting surfaces help support correct hub seating and sensor operation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support accurate replacement fitment and long-term reliability.
