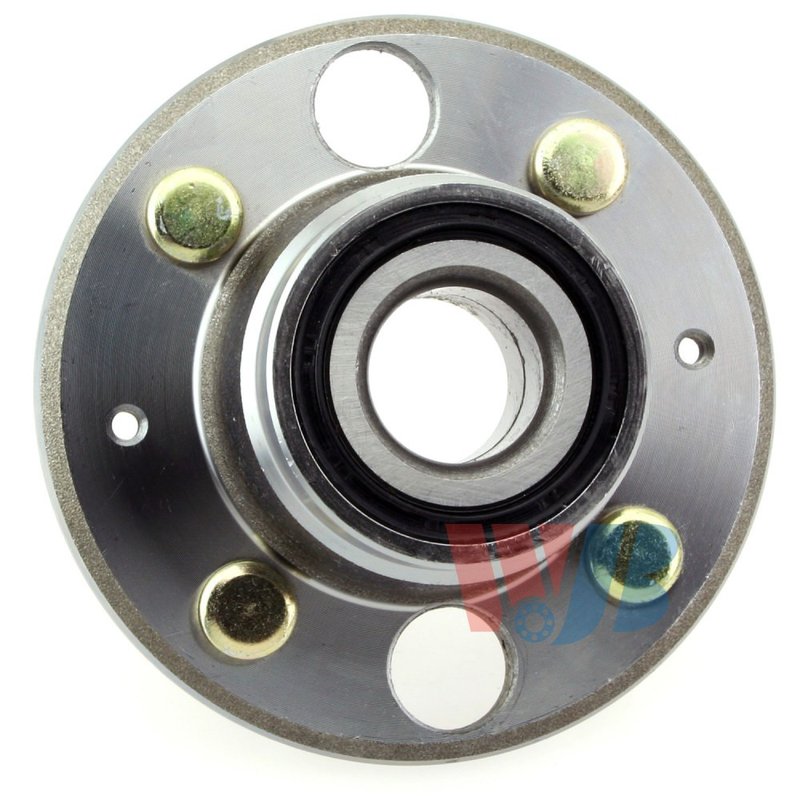

InMotion WA513033 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Honda and Acura

InMotion WA513033 is a rear wheel bearing and hub assembly built for direct replacement on select Honda and Acura applications. It is engineered from OE data and measurements for fitment, performance, and service life, with precise hub dimensions for a proper wheel and brake interface.

Compatible With 1990-1993 Acura Integra rear, 1988-1991 Honda Civic rear, and 1986-1989 Honda Accord rear, this assembly supports standard-grade replacement needs for the listed vehicles.

Key Features

• Part number WA513033 wheel bearing and hub assembly
• Rear position application
• 4 wheel studs
• Wheel pilot diameter: 56.1 mm
• Brake pilot diameter: 61.0 mm
• Hub pilot diameter: 68.4 mm
• Flange diameter: 135.8 mm
• Bolt circle diameter: 100.0 mm (3.941 in.)
• Anti-lock brake sensor not included
• OE-data-based dimensions for direct replacement fitment

Detailed Description

InMotion WA513033 is a rear wheel bearing and hub assembly designed for select Honda Civic, Honda Accord, and Acura Integra models. The assembly is manufactured with high-precision processes and strict quality-control standards, then matched to original equipment measurements to help ensure correct fitment at the wheel end. The 4-stud hub design, 100.0 mm bolt circle, and listed pilot diameters provide the dimensional details needed for a proper rear hub replacement on the specified vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Rear wheel bearing noise on a Honda Civic, Accord, or Acura Integra
• Excessive wheel play or looseness at the rear hub
• Uneven wheel mounting caused by worn hub components
• Brake rotor seating issues related to hub wear
• Restoring proper rear wheel support on standard-grade applications

Installation Notes and Tips

Confirm rear position fitment against the vehicle listing before installation. Verify the wheel pilot, brake pilot, hub pilot, and bolt circle dimensions match the original assembly, and check that the vehicle does not require an ABS sensor in the hub, since this unit is listed without one. Always inspect related rear suspension and brake components during hub replacement.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements, with strict quality-control criteria applied during production. The result is a direct-replacement part intended to match the original hub assembly specifications for the listed Honda and Acura rear applications.
