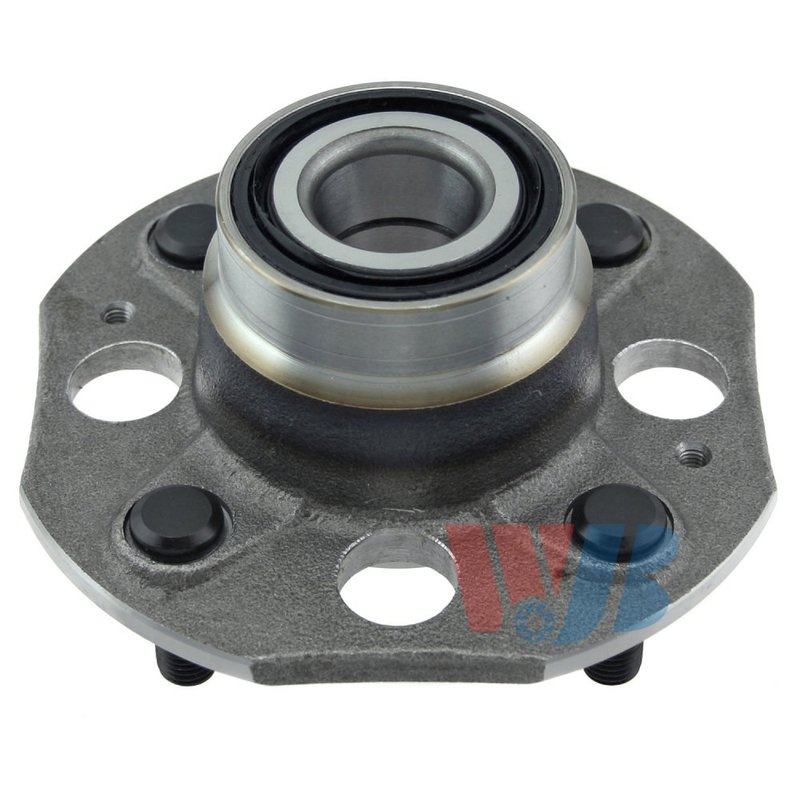

InMotion WA513080 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub for Honda Accord

The InMotion WA513080 is a rear wheel bearing and hub assembly built for 1990-1997 Honda Accord models with standard grade fitment. It is engineered from OE data and measurements to match the original application for proper fit, smooth wheel support, and long service life. The WA513080 is a direct replacement option for drivers servicing a Honda Accord rear hub assembly.

Key Features

• Rear wheel bearing and hub assembly for 1990-1997 Honda Accord
• Direct replacement design based on OE data and measurements
• 4 wheel studs
• Bolt circle diameter: 114.3 mm / 4.504 in.
• Wheel pilot diameter: 58.0 mm
• Brake pilot diameter: 64.0 mm
• Hub pilot diameter: 66.0 mm
• Anti-lock brake sensor not included
• Part number: WA513080

Detailed Description

InMotion WA513080 is manufactured with precision processes and quality-control standards to deliver consistent dimensions and dependable fitment. This rear hub assembly is made for the Honda Accord rear position across 1990-1997 model years, with geometry matched to the original part for correct wheel mounting and brake interface alignment. If you are replacing a worn Honda Accord wheel bearing hub assembly, WA513080 provides the specifications needed for a clean OE-style service replacement.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Rear wheel noise caused by a worn hub or bearing
• Excessive wheel play or looseness at the rear axle
• Uneven rotor contact from hub wear or runout
• Vibration or rough rotation from a failing rear bearing assembly
• Restoring proper wheel mounting on a Honda Accord rear hub

Installation Notes

Verify rear fitment by year, model, and position before installation. Confirm the 4-lug bolt pattern, pilot diameters, and brake interface dimensions match the original component on the vehicle. Because the anti-lock brake sensor is not included, reuse or transfer the existing sensor setup only if the vehicle configuration requires it. Professional installation and final torque checks are recommended for a rear wheel bearing and hub assembly replacement.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and strict quality-control criteria to support accurate fitment and consistent performance on the 1990-1997 Honda Accord, rear. Part number WA513080 is built as a direct replacement for the designated application.
