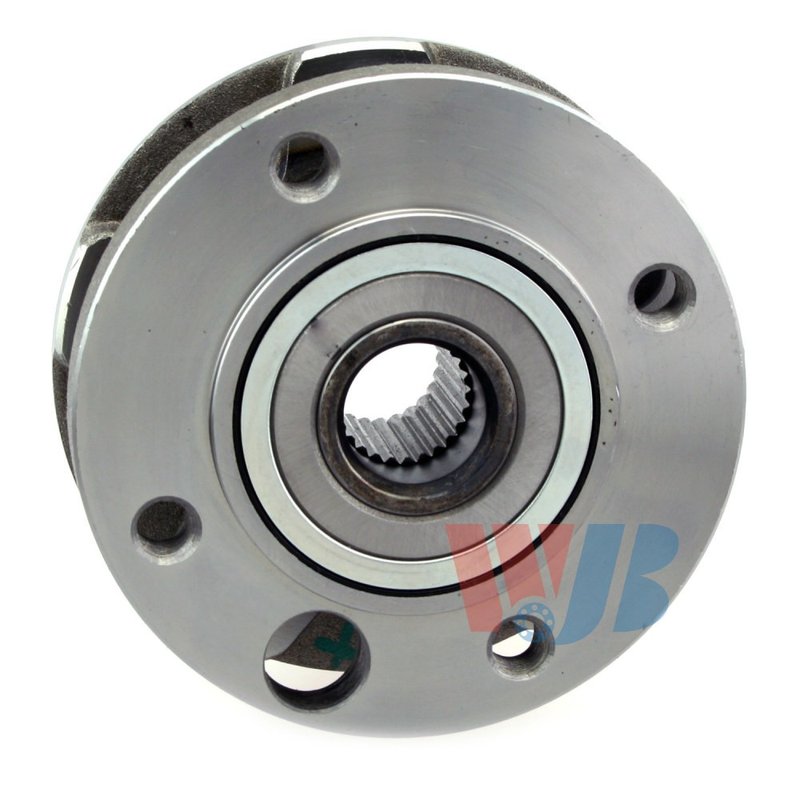

InMotion WA513082 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Dakota

InMotion WA513082 is a front wheel bearing and hub assembly built for 1987-1990 Dodge Dakota Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and controlled quality checks to support proper wheel mounting and hub performance.

Key Features

• Direct replacement front hub assembly for 1987-1990 Dodge Dakota
• Part number WA513082 for easy identification and ordering
• 26-spline hub design
• 5 wheel studs with a 4-bolt flange pattern
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 73.3 mm
• Hub pilot diameter: 86.0 mm
• Rectangular flange shape with 53.7 mm flange offset
• ABS sensor not included

Detailed Description

InMotion WA513082 is a front wheel bearing and hub assembly designed for the Dodge Dakota front axle on 1987, 1988, 1989, and 1990 models. The assembly uses OE-based dimensions to match the original mounting points and wheel interface, helping maintain correct hub location, wheel seating, and brake component alignment. With a 26-spline configuration, 5 wheel studs, and a 114.3 mm bolt circle, this hub assembly is specified for Standard Grade front applications on the Dodge Dakota.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive play at the wheel hub
• Worn or damaged hub mounting surfaces
• Improper wheel fitment caused by hub wear
• Brake and wheel alignment issues related to hub condition

Installation Notes and Tips

Verify spline count, bolt circle diameter, flange dimensions, and pilot diameters before installation. Confirm the vehicle is a 1987-1990 Dodge Dakota, front, Standard Grade application, and inspect related components such as the axle shaft, knuckle, and brake hardware for wear before reassembly. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle configuration requires one.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA513082 unit is built from OE data and measurements to support correct fitment, performance, and service life in the specified Dodge Dakota front application.
