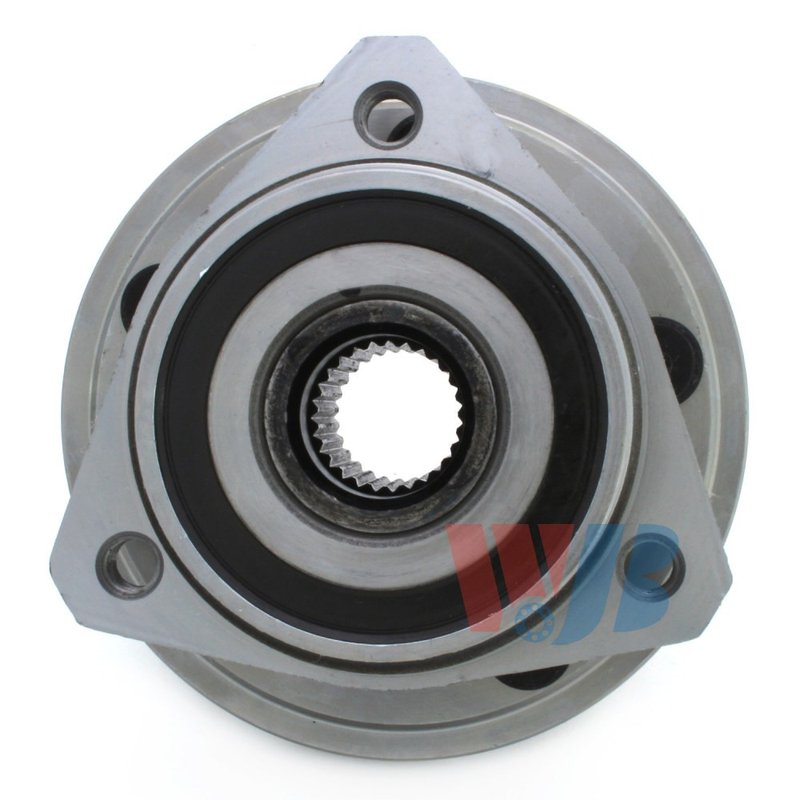

InMotion WA513084 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA513084 is a front wheel bearing and hub assembly built for Jeep applications that need a direct OE-style replacement. It is engineered from OE data and measurements for fitment, performance, and service life, with precision manufacturing and strict quality control.

Compatible With Jeep Cherokee, Wrangler, TJ, Grand Cherokee, Grand Wagoneer, Comanche, and Wagoneer front applications across the listed model years. Part number WA513084 is designed for standard-grade front hub service on these vehicles.

Key Features

• Part type: wheel bearing and hub assembly
• Front position application
• 27 spline quantity
• 5 wheel studs
• 3 flange bolt holes
• Triangular flange shape
• Bolt circle diameter: 114.3 mm / 4.5 in
• Hub pilot diameter: 88.6 mm
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 71.9 mm
• Flange diameter: 153.5 mm
• Flange offset: 54.3 mm
• ABS sensor not included

Detailed Description

WA513084 is a front wheel hub assembly engineered for Jeep Cherokee, Jeep Wrangler, Jeep TJ, Jeep Grand Cherokee, Jeep Grand Wagoneer, Jeep Comanche, and Jeep Wagoneer models listed in the fitment data. The assembly uses OE-based dimensions to support proper hub location, wheel mounting, and brake interface alignment. Its 27-spline design, 5-stud pattern, and triangular flange geometry are matched to the specified front axle applications for a direct replacement installation.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Part number WA513084 is a practical choice when replacing a worn front hub on Jeep Cherokee or Wrangler platforms where correct pilot diameters and bolt circle measurements matter.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Wheel looseness caused by hub wear
• Vibration related to hub or bearing deterioration
• Improper wheel mounting from damaged pilot surfaces
• Brake and wheel alignment issues tied to hub wear

Installation Notes

• Verify front fitment by year, make, model, and position before installation.
• Confirm spline count, bolt circle diameter, and pilot dimensions against the original part.
• Inspect the knuckle, axle shaft, and mounting surfaces for wear or damage before assembly.
• Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle requires one.
• Torque all fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built from OE data and measurements to support correct fitment and consistent service performance on the listed Jeep front applications.
