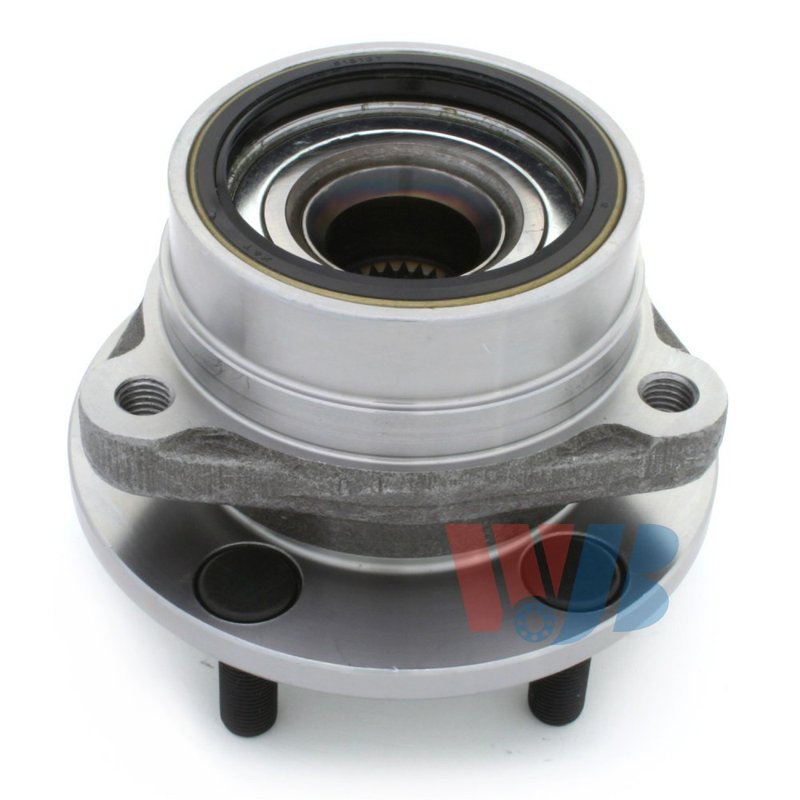

InMotion WA513107 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Jeep

The InMotion WA513107 wheel bearing and hub assembly is a direct replacement for front applications on select Jeep models from 1984-1989. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

Compatible with Jeep Cherokee, Comanche, Wagoneer, and Wrangler front positions, this hub assembly is designed for vehicles that require a 5-stud, 27-spline front hub with a triangular flange pattern.

Key Features

• Part number: WA513107
• Front wheel bearing and hub assembly
• 27 spline quantity
• 5 wheel studs
• 3 flange bolt holes
• Triangular flange shape
• Bolt circle diameter: 114.3 mm / 4.5 in
• Flange diameter: 144.0 mm
• Flange offset: 46.0 mm
• Wheel pilot diameter: 71.3 mm
• Brake pilot diameter: 71.8 mm
• Hub pilot diameter: 95.3 mm
• ABS sensor not included

Detailed Description

InMotion WA513107 is manufactured with precision processes and strict quality-control standards to match the original hub assembly dimensions for the listed Jeep front applications. It is built as a direct replacement for the OE part, with fitment based on OE data and measurements to support correct wheel mounting, hub alignment, and dependable driveline operation. This part number WA513107 is a practical choice for restoring front hub function on Jeep Cherokee, Jeep Comanche, Jeep Wagoneer, and Jeep Wrangler models within the listed years.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play or looseness at the hub
• Vibration or instability from a worn front hub assembly
• Improper wheel mounting caused by hub wear
• Service replacement for a damaged OE-style front hub

Installation Notes and Tips

Verify spline count, bolt circle, flange dimensions, and pilot diameters before installation. This assembly is for front use only and does not include an anti-lock brake sensor. Confirm the vehicle’s original hub configuration matches the listed Jeep Cherokee, Comanche, Wagoneer, or Wrangler application before installation. Professional installation and proper torque procedures are recommended.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fit and performance across the listed applications. Part number WA513107 is built for direct replacement use on the specified Jeep front hub applications.
