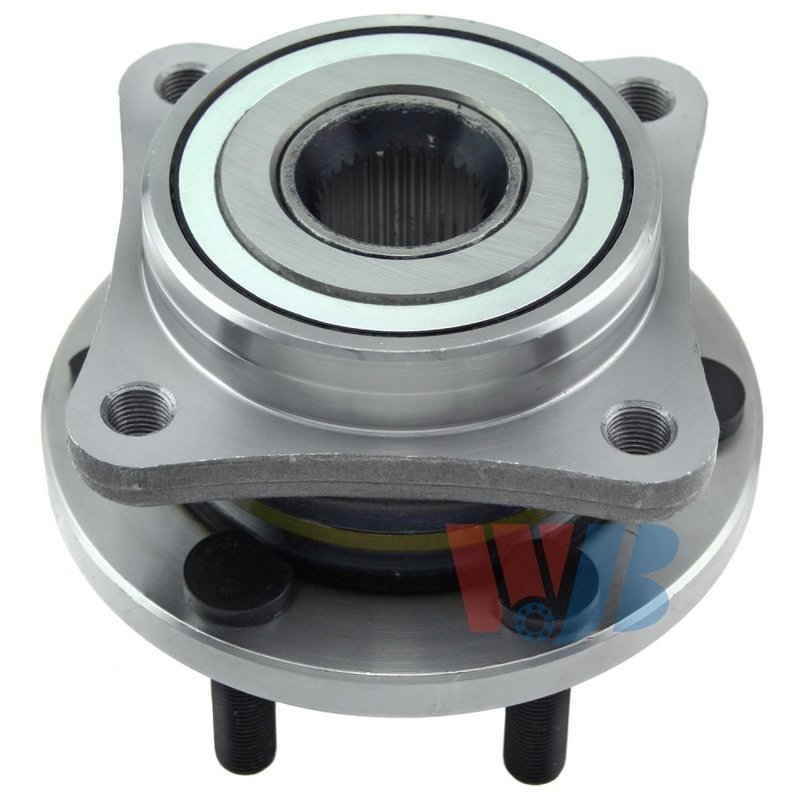

InMotion WA513109 Wheel Bearing and Hub Assembly - Front or Rear

Wheel Bearing and Hub Assembly for Viper and Dakota

InMotion WA513109 is a wheel bearing and hub assembly built for precise OE-style replacement on select Dodge applications. It is engineered from OE data and measurements for fitment, performance, and service life, with application-specific dimensions that matter for rear and front hub service.

• Part number: WA513109
• Wheel bearing and hub assembly for driveline and axle service
• 31 spline quantity
• 6 wheel studs
• 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 71.4
• Brake pilot diameter: 73.2
• Hub pilot diameter: 96.2
• Flange diameter: 143.0
• Flange offset: 53.5
• Rectangular flange shape
• Anti-lock brake sensor not included

Fitment Details

Compatible With select Dodge Viper and Dodge Dakota applications. Fits 2015-2017 Dodge Viper, rear, standard grade; fits 2008-2010 Dodge Viper, rear, standard grade; fits 1996-2006 Dodge Viper, rear, standard grade; fits 1992 Dodge Viper, rear, standard grade; fits 1993-1995 Dodge Viper, front, standard grade; and fits 1990-1996 Dodge Dakota, front, standard grade.

This part cross-references no listed interchange numbers in the provided data.

Built for OE-Style Replacement

WA513109 is manufactured with strict quality-control criteria and high-precision production methods to help maintain consistent hub geometry and bearing performance. The design follows OE measurements for the designated applications, making it a direct replacement choice for service work on Dodge Viper and Dodge Dakota wheel-end assemblies. If you are replacing a worn front hub on a 1990-1996 Dodge Dakota or servicing a rear hub on a Dodge Viper, this assembly is specified for those positions.

Common Problems This Part Can Address

• Wheel-end noise caused by a worn bearing assembly
• Excessive hub play or looseness at the wheel
• Uneven wheel rotation from a damaged hub assembly
• Fitment issues from a mismatched replacement hub
• Service replacement for front or rear hub wear on Dodge Viper and Dodge Dakota

Installation Notes and Tips

Confirm the vehicle year, model, and position before ordering, since this assembly is listed for specific front and rear applications. Verify spline count, bolt circle diameter, flange offset, and pilot diameters against the original part before installation. Because the anti-lock brake sensor is not included, reuse or source the correct sensor separately if your vehicle requires one.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fit and long-term service in the specified applications.
