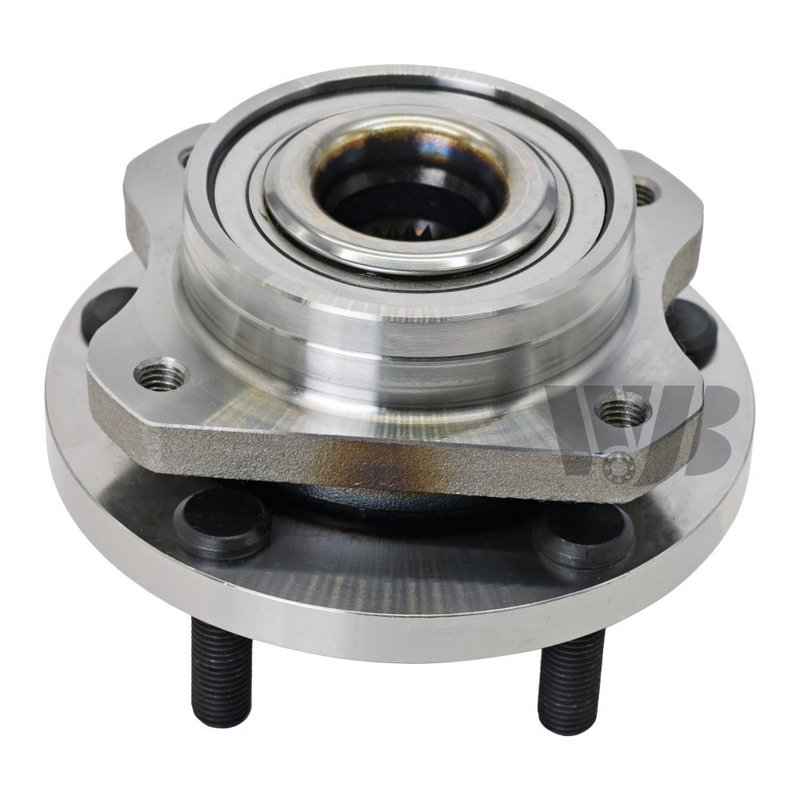

InMotion WA513123HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA513123HD is a front wheel bearing and hub assembly for driven applications that require a direct OE-style replacement. Built from OE data and measurements, this hub assembly is engineered for accurate fitment on Chrysler, Dodge, and Plymouth front-wheel-drive platforms, including Town & Country, Caravan, Grand Caravan, Voyager, and Prowler models.

With precision manufacturing and strict quality-control standards, WA513123HD is designed to match the original hub’s dimensions and mounting points for dependable wheel support and consistent driveline operation.

Key Features

• Part number: WA513123HD
• Front wheel bearing and hub assembly for driven applications
• Ball bearing design
• 26-spline hub configuration
• 5-bolt flange with M12-1.5 thread size
• 3-bolt knuckle mounting pattern
• Hub pilot diameter: 73.25 mm (2.88 in.)
• Flange diameter: 139.32 mm (5.49 in.)
• Flange offset: 37.5 mm (1.48 in.)
• Hub centerbore diameter: 114.3 mm (4.5 in.)
• Anti-lock brake sensor not included
• Wiring harness not included

Detailed Description

InMotion WA513123HD is a new front wheel bearing and hub assembly built for direct replacement on select Chrysler, Dodge, and Plymouth vehicles. It is a driven hub assembly with a 26-spline design, ball bearing construction, and OE-based dimensions for proper alignment with the knuckle and wheel mounting surface. The assembly uses a 5-bolt flange, M12-1.5 flange bolt thread, and 3 mounting bolts to the knuckle for a factory-style installation layout. This part cross-references MOOG 513123 and SKF BR930215 for the same application.

Compatible With 1996-2007 Chrysler Town & Country, front; 1996-2007 Dodge Caravan, front; 1996-2007 Dodge Grand Caravan, front; 2000-2003 Chrysler Voyager, front; 2001-2002 Chrysler Prowler, front; 1999-2001 Plymouth Prowler, front; 1997 Plymouth Prowler, front; 2000 Chrysler Grand Voyager, front; 1996-2000 Plymouth Grand Voyager, front; and 1996-2000 Plymouth Voyager, front.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• Uneven wheel rotation caused by bearing wear
• Hub fitment issues on OE-style replacement jobs
• Front driveline service needs on driven applications

Installation Notes and Tips

• Verify spline count, flange dimensions, and knuckle bolt pattern before installation.
• Confirm the vehicle uses a front driven hub application and does not require an ABS sensor in the assembly.
• Inspect the knuckle, axle splines, and mounting surfaces for wear or corrosion before fitting the new hub.
• Use the correct torque specifications for the flange bolts and knuckle mounting bolts during installation.
• Check wheel and brake component clearance after installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. The part is engineered from OE data and measurements to support correct fitment, performance, and service life on the listed Chrysler, Dodge, and Plymouth applications.
