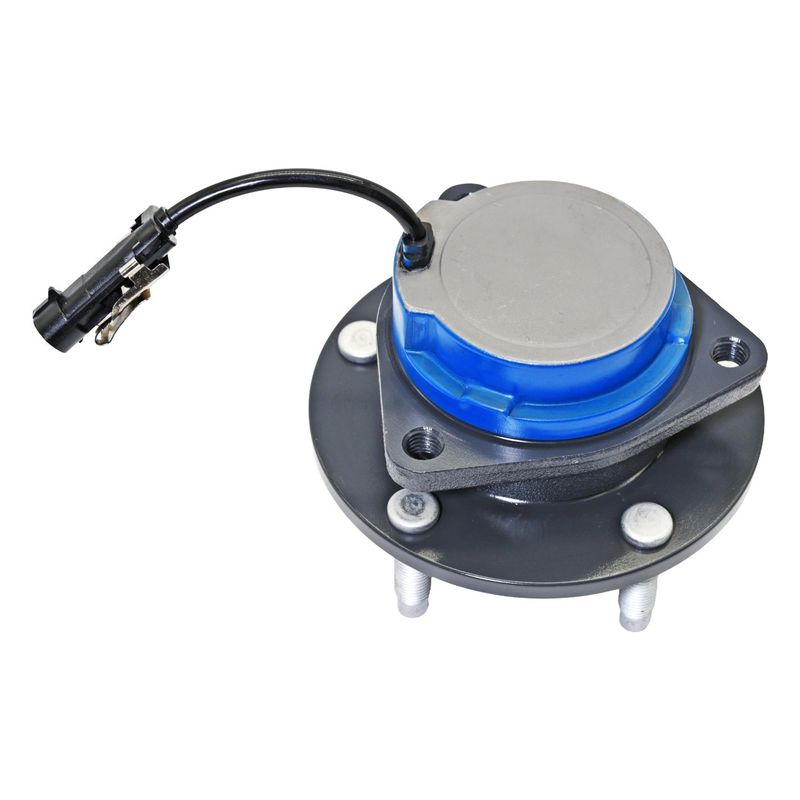

InMotion WA513139HD Wheel Bearing and Hub Assembly - Front
OE Quality 60-Day Returns
InMotion

InMotion WA513139HD Wheel Bearing and Hub Assembly - Front

Brand InMotion WA513139HD
Position Front
Hub Pilot Diameter 2.78
Hub Pilot Diameter 70.599999999999994
Flange Shape Circle
Anti Lock Brake Sensor Included Yes
Bearing Type Ball
Flange Offset 1.65
Flange Offset 42
Flange Diameter 145.5
Flange Diameter 5.73
Abs Connector Shape Cover
Abs Ring Type Tone ring
Driven Or Non-driven Non-driven
Flange Bolt Size (in) 0.47
Flange Bolt Size (mm) 12
Flange Bolt Thread Size M12-1.5
Hub Centerbore Diameter (in) 4.75
Hub Centerbore Diameter (mm) 120.6
Lug Bolt Thread Size M12-1.75
New Or Remanufactured New
Number Of Abs Sensor Ring Teeth 47
Number Of Flange Bolts Included 5
Number Of Lug Bolts Included 0
Number Of Mounting Bolts To Knuckle 3
Wiring Harness Included No
Fits Cadillac and Chevrolet · 17 vehicles

Cross-references MOOG Hub Assemblies 513139, SKF BR930099 and 7470569 for the same application. See all 4.

$108.37Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $108.37
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options
InMotion WA513139HD Wheel Bearing and Hub Assembly - Front

Related reading

This part fits 17 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2008CadillacXLRPlatinumFrontPremium Grade
2008ChevroletCorvette—FrontPremium Grade
2007CadillacXLRVFrontPremium Grade
2007ChevroletCorvette—FrontPremium Grade
2006CadillacXLRBaseFrontPremium Grade
2006ChevroletCorvette—FrontPremium Grade
2005CadillacXLR—FrontPremium Grade
2005ChevroletCorvette—FrontPremium Grade
2004CadillacXLR—FrontPremium Grade
2004ChevroletCorvette—FrontPremium Grade
2003ChevroletCorvette—FrontPremium Grade
2002ChevroletCorvette—FrontPremium Grade
2001ChevroletCorvette—FrontPremium Grade
2000ChevroletCorvette—FrontPremium Grade
1999ChevroletCorvette—FrontPremium Grade
1998ChevroletCorvette—FrontPremium Grade
1997ChevroletCorvette—FrontPremium Grade
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Hub Assemblies — 513139SKF — BR9300997470569FW9139
