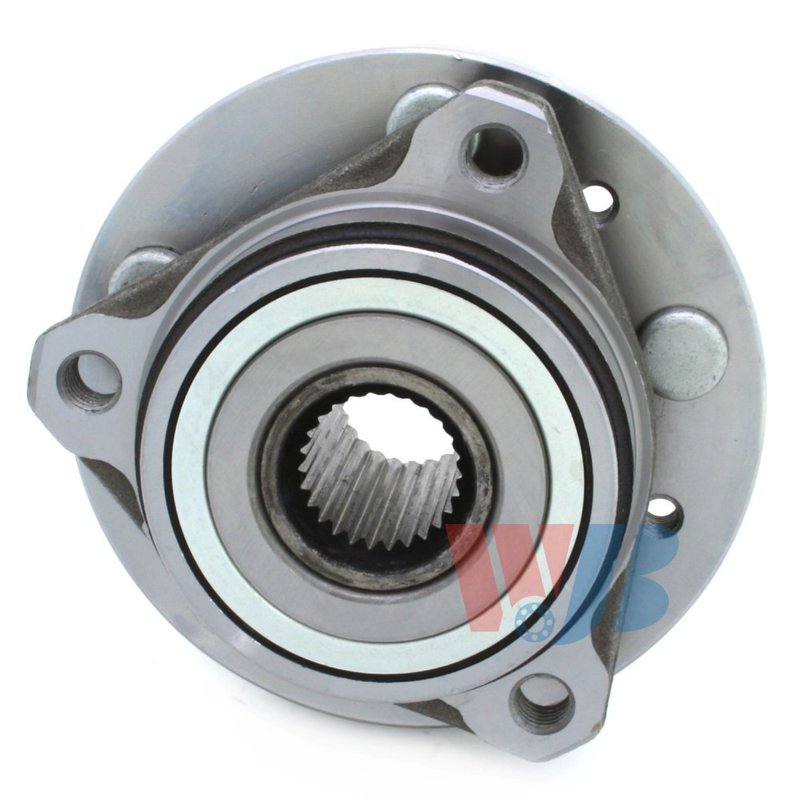

InMotion WA513156 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Windstar

InMotion WA513156 is a front wheel bearing and hub assembly built for 1998-2003 Ford Windstar models. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and controlled quality standards for consistent wheel support and alignment.

Key Features

• Direct replacement front hub assembly for 1998-2003 Ford Windstar
• 26-spline design with 5 wheel studs
• 3 flange bolt holes with triangular flange shape
• Wheel pilot diameter: 63.2 mm
• Brake pilot diameter: 70.9 mm
• Hub pilot diameter: 84.4 mm
• Flange diameter: 139.0 mm
• Bolt circle diameter: 108.0 mm / 4.25 in
• Flange offset: 41.3 mm
• ABS sensor not included

Detailed Description

InMotion WA513156 is a front wheel bearing and hub assembly for the Ford Windstar, designed to match OE dimensions and application requirements. The hub assembly uses a 26-spline configuration, 5 wheel studs, and a triangular flange with 3 bolt holes to support proper mounting and wheel interface. With precise pilot diameters and bolt circle measurements, this part is built for accurate fitment on 1998-2003 Ford Windstar front applications. This part cross-references NHUB-13 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Excessive wheel play or looseness
• Uneven hub wear from a worn original assembly
• Vibration or roughness from a damaged hub unit
• Fitment issues caused by incorrect hub dimensions

Installation Notes and Tips

Verify the vehicle is a 1998-2003 Ford Windstar, front position, before ordering. Compare spline count, bolt circle diameter, flange offset, and pilot diameters against the original part to confirm match. Clean the mounting surface thoroughly and inspect related components such as the axle, knuckle, and brake hardware during replacement. Because the ABS sensor is not included, confirm your vehicle’s sensor arrangement before installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA513156 unit is engineered from OE data and measurements to support proper fit, performance, and service life on the Ford Windstar front hub application.
