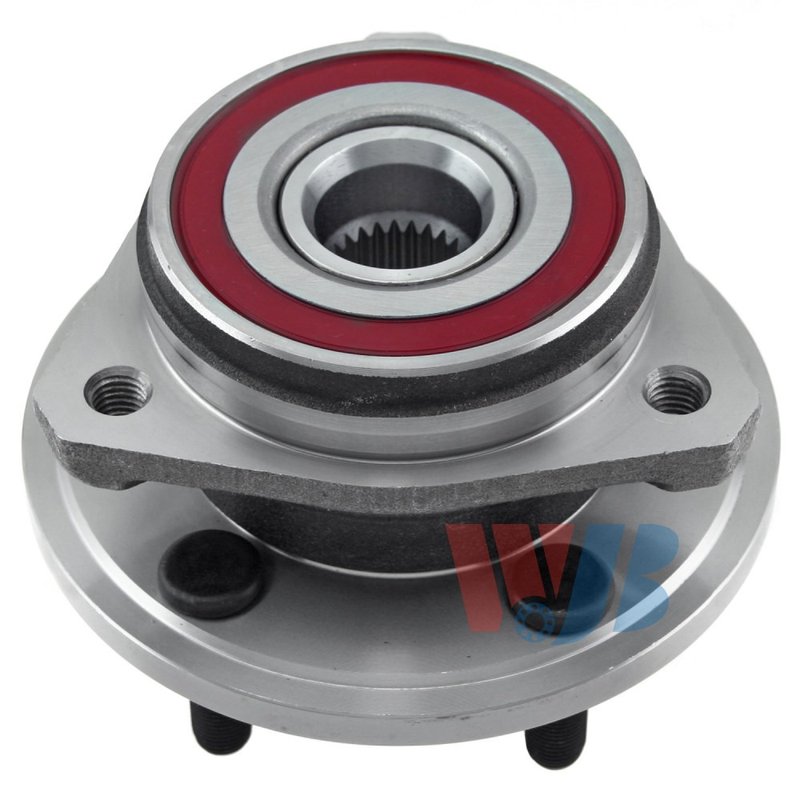

InMotion WA513158 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Jeep

Restore front-end wheel support and hub function with this InMotion wheel bearing and hub assembly, part number WA513158. Built from OE data and measurements, it is engineered for direct replacement use on select Jeep TJ, Wrangler, and Cherokee front applications.

Key Features

• Wheel bearing and hub assembly for the front position
• 27-spline design with 5 wheel studs
• 3 flange bolt holes and triangular flange shape
• 114.3 bolt circle diameter and 153.5 flange diameter
• Hub pilot diameter: 100.1; wheel pilot diameter: 71.4; brake pilot diameter: 71.9
• Flange offset: 48.4
• ABS sensor not included
• Part number WA513158

Detailed Description

InMotion WA513158 is a front wheel bearing and hub assembly manufactured with strict quality-control standards and precision machining. It is built to match the original part’s fit and dimensions for direct replacement service on 1999-2006 Jeep Wrangler front, 2000-2006 Jeep TJ front, and 1999-2001 Jeep Cherokee front applications. The assembly uses OE data and measurements to support proper fitment, wheel mounting, and long-term service life. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2000-2006 Jeep TJ, front, Standard Grade
• Fits 1999-2006 Jeep Wrangler, front, Standard Grade
• Fits 1999-2001 Jeep Cherokee, front, Standard Grade

Common Replacement Reasons

• Front wheel bearing noise or growling
• Excessive wheel play or looseness
• Uneven hub wear affecting wheel rotation
• Vibration or roughness from the front hub area
• Need for a direct OE-style hub replacement

Installation Notes

Confirm spline count, bolt circle diameter, flange offset, and pilot diameters before installation. This assembly does not include an ABS sensor. Verify the front position and vehicle application against the listed Jeep fitment before service.

Quality Assurance

Each InMotion hub assembly is produced using OE-based measurements and controlled manufacturing processes to help maintain consistent fit and performance. Part number WA513158 is built as a direct replacement hub assembly for the listed Jeep front applications.
