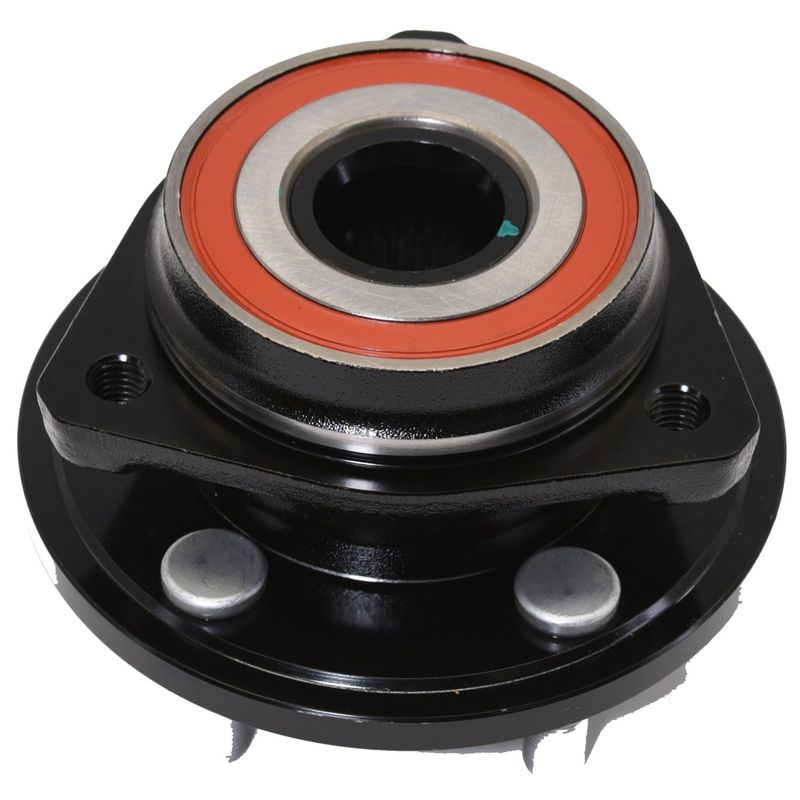

InMotion WA513158HD Wheel Bearing and Hub Assembly - Front

Wheel Bearing and Hub Assembly Overview

The InMotion WA513158HD wheel bearing and hub assembly is built for driven front applications with OE-based measurements for accurate fitment. It is a new direct replacement style part for Jeep hub service, with ball bearing construction and strict quality control throughout manufacturing.

Key Features

• OE-data engineering for fit, performance, and service life
• Driven hub design with 27 splines
• Ball bearing construction for smooth rotation
• New assembly with a 5-bolt flange pattern
• ABS sensor not included
• Part number WA513158HD for easy identification

Detailed Description

WA513158HD is engineered as a direct replacement wheel bearing and hub assembly for select Jeep TJ, Wrangler, and Cherokee front applications. The hub uses OE measurements to match the original mounting and operating dimensions, including a 71.9 mm hub pilot diameter, 153.5 mm flange diameter, and 48.6 mm flange offset. It also features a 1/2"-20 flange bolt thread, M12-1.75 lug bolt thread, and a 120.65 mm hub centerbore diameter. This part cross-references MOOG Hub Assemblies (e.g., 513158) for the same application.

What It Is Used For

• Restoring wheel hub support when bearing wear causes noise
• Replacing a hub with looseness or play
• Addressing vibration from a worn driven hub assembly
• Correcting damaged flange or mounting surfaces
• Servicing a front hub assembly on Jeep TJ, Wrangler, or Cherokee models

Installation Notes and Tips

Confirm spline count, flange dimensions, and bolt thread sizes before installation. This assembly is intended for front driven applications and does not include an ABS sensor or wiring harness. Verify the vehicle’s original hub configuration against the listed fitment before service. Fits 2000-2006 Jeep TJ, front. Fits 1999-2006 Jeep Wrangler, front. Fits 1999-2001 Jeep Cherokee, front.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria and OE-based engineering to support consistent fitment and service life. The part is new and built to match designated applications using precise measurements.
