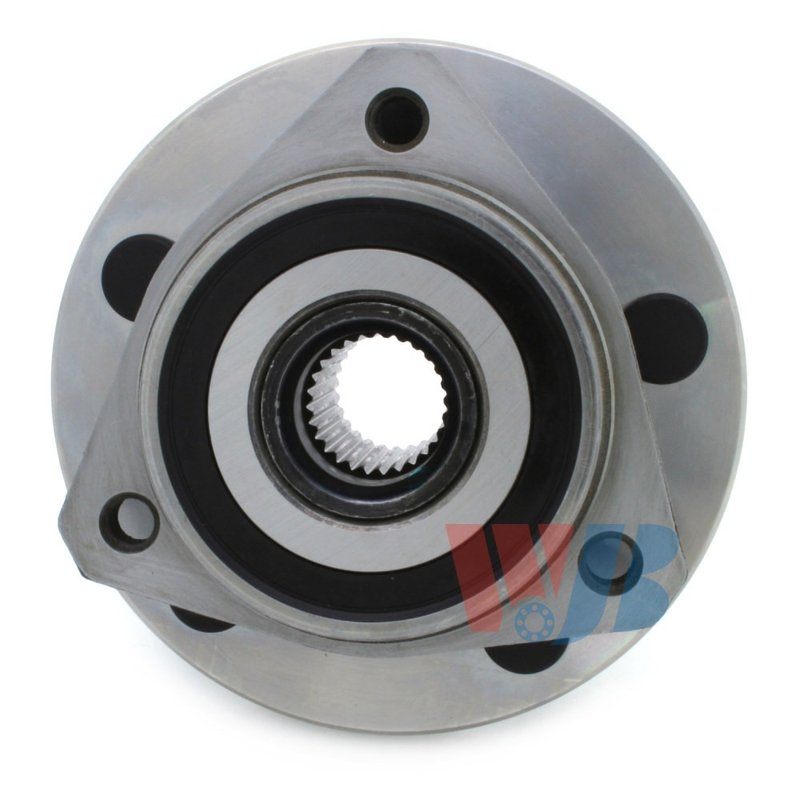

InMotion WA513159 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Jeep Grand Cherokee

InMotion WA513159 is a front wheel bearing and hub assembly built for 1999-2004 Jeep Grand Cherokee applications. It is engineered from OE data and measurements to match the original fit, with precision manufacturing and controlled quality standards for dependable wheel-end service.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 1999-2004 Jeep Grand Cherokee, front
• 27-spline hub design
• 5 wheel studs with a 5.0 in. bolt circle diameter
• Triangular flange shape with 3 flange bolt holes
• Hub pilot diameter: 88.9 mm
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 71.8 mm
• Flange diameter: 164.2 mm and flange offset: 53.8 mm
• ABS sensor not included

Detailed Description

The InMotion WA513159 wheel bearing and hub assembly is designed for front-end service on the Jeep Grand Cherokee, providing the correct hub geometry, stud count, and pilot dimensions for the listed 1999-2004 vehicles. Built using OE measurements, this assembly supports accurate wheel mounting and proper interface with the brake and hub components on the front axle. For buyers searching for a front wheel hub assembly for Jeep Grand Cherokee 1999-2004 or an OE-style replacement hub bearing assembly, WA513159 offers the specified fitment and dimensional match.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What It Helps Address

• Wheel-end noise from a worn bearing assembly
• Excessive play or looseness at the front hub
• Uneven wheel mounting caused by hub wear
• Vibration related to hub or bearing deterioration
• Front wheel service on a Jeep Grand Cherokee with the correct OE-style dimensions

Installation Notes and Tips

Confirm front-position fitment before ordering and verify spline count, bolt circle, pilot diameters, and flange dimensions against the removed part. Inspect mating surfaces, axle splines, and brake components during installation to ensure proper seating and alignment. Because the ABS sensor is not included, reuse or source the sensor separately if required by the vehicle configuration.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria and OE-based engineering to support fit accuracy, performance, and service life. The WA513159 is built as a direct replacement for the designated application.
