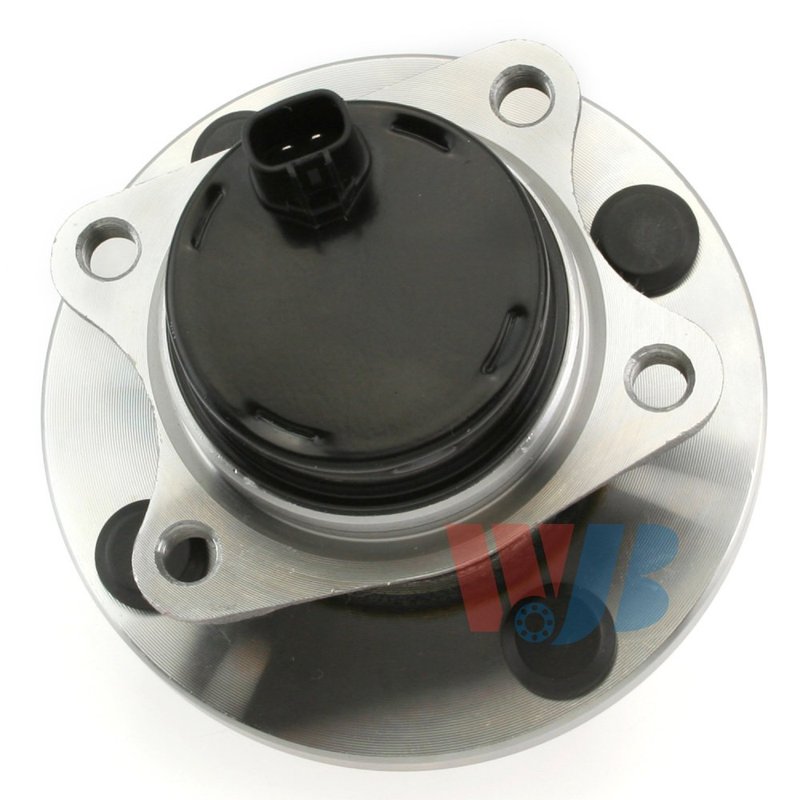

InMotion WA513162 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for MR2 Spyder

InMotion WA513162 is a front wheel bearing and hub assembly built for the 2000-2005 Toyota MR2 Spyder. It is engineered as a direct replacement for the original front hub assembly, with OE-based measurements to support proper fitment, wheel mounting, and bearing performance.

This InMotion wheel hub assembly for Toyota MR2 Spyder front applications is manufactured with precision machining and quality-control standards intended to maintain consistent dimensions. Part number WA513162 is specified for the front position and includes an ABS sensor.

Key Features

• Direct replacement wheel bearing and hub assembly for front use
• Fits 2000-2005 Toyota MR2 Spyder, front
• Anti-lock brake sensor included
• 4 wheel studs and 4 flange bolt holes
• 4-lug bolt pattern with 100.0 mm bolt circle diameter
• Wheel pilot diameter: 54.0 mm
• Brake pilot diameter: 55.0 mm
• Hub pilot diameter: 67.0 mm
• Flange diameter: 125.0 mm with 55.5 mm flange offset
• Modified rectangle flange shape

Detailed Description

WA513162 is designed for the front hub location on the 2000-2005 Toyota MR2 Spyder and is built from OE data and measurements to match the original application. The assembly uses a 4-stud, 4-bolt-hole layout with a 100.0 mm bolt circle diameter, making it a direct-fit replacement for the specified vehicle range. The included ABS sensor supports vehicles equipped with anti-lock braking at the front hub.

For buyers searching for a Toyota MR2 Spyder front wheel bearing and hub assembly, InMotion WA513162 provides the dimensional details needed for accurate replacement selection. This part number, WA513162, is listed for the front position only and is matched to the 2000, 2001, 2002, 2003, 2004, and 2005 model years.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive front wheel play or looseness
• ABS warning concerns related to the front hub sensor
• Uneven wheel mounting caused by hub wear or damage
• Vibration or rough rotation at the front wheel end

Installation Notes and Tips

Confirm the front position, wheel stud count, bolt circle diameter, and sensor configuration before installation. Compare the old hub assembly to the new unit and verify the flange dimensions, pilot diameters, and ABS sensor setup match the vehicle requirements. Proper torque procedures and clean mounting surfaces are important for correct hub seating and wheel alignment.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. The part is engineered from OE data and measurements to support fitment, performance, and service life in the specified Toyota MR2 Spyder front application.
