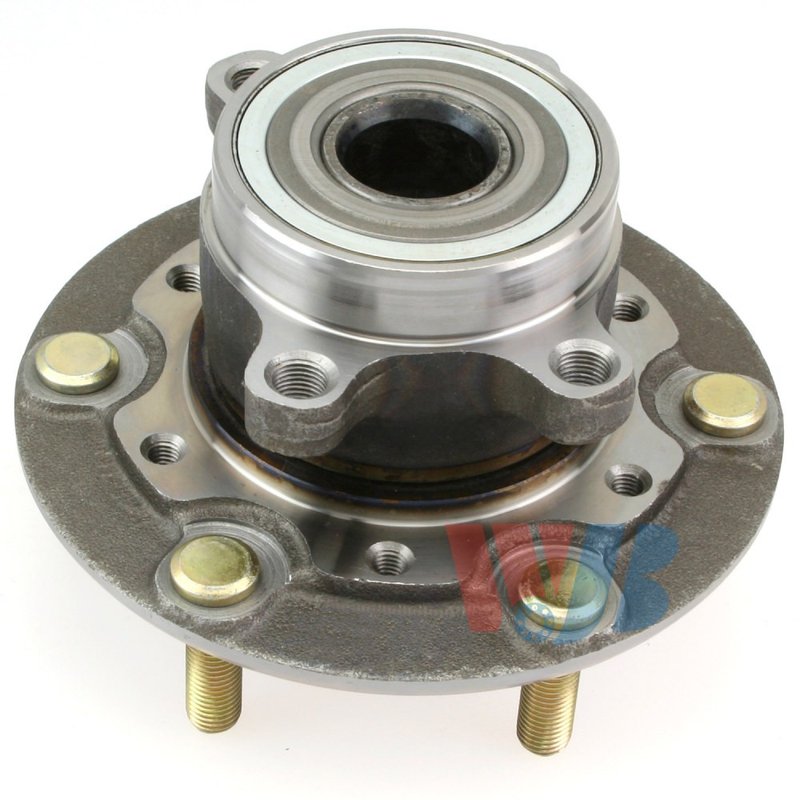

InMotion WA513166 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Isuzu and Honda

InMotion WA513166 is a front wheel bearing and hub assembly built for direct replacement on select Isuzu and Honda applications. It is engineered from OE data and measurements to match the original fit, performance, and service life requirements for the listed vehicles.

• Front wheel bearing and hub assembly
• Direct replacement for the original hub assembly
• 17-spline design
• 6 wheel studs
• 4 flange bolt holes
• Bolt circle diameter: 139.7 mm
• Wheel pilot diameter: 100.0 mm
• Brake pilot diameter: 101.0 mm
• Hub pilot diameter: 83.0 mm
• Flange diameter: 166.0 mm
• Flange offset: 56.5 mm
• Anti-lock brake sensor not included

Fitment Details

Compatible with front applications on 2002-2004 Isuzu Axiom, 2002-2004 Isuzu Rodeo, and 2002 Honda Passport. This part number, WA513166, is specified for standard grade front service on these vehicles.

For shoppers searching for a front wheel bearing hub assembly for 2002-2004 Isuzu Rodeo or a replacement hub for 2002-2004 Isuzu Axiom, WA513166 provides the dimensional match needed for the listed OE-style applications. It also serves as a front hub replacement for the 2002 Honda Passport.

Common Replacement Uses

• Wheel bearing noise from a worn front hub assembly
• Excessive play or looseness at the front wheel
• Vibration or roughness related to hub wear
• Damaged wheel studs or hub mounting surfaces
• Restoring proper front wheel support on the listed vehicles

Installation Notes

Verify spline count, bolt circle diameter, flange offset, and pilot diameters before installation. Confirm that the vehicle uses a front standard-grade hub application and note that the anti-lock brake sensor is not included. Professional installation is recommended, and all mounting surfaces should be cleaned and inspected before assembly.

Quality Assurance

InMotion manufactures these hub assemblies using high-precision processes and strict quality-control criteria. Each WA513166 unit is built to OE data and measurements for accurate fitment and dependable service on the specified Isuzu and Honda applications.
