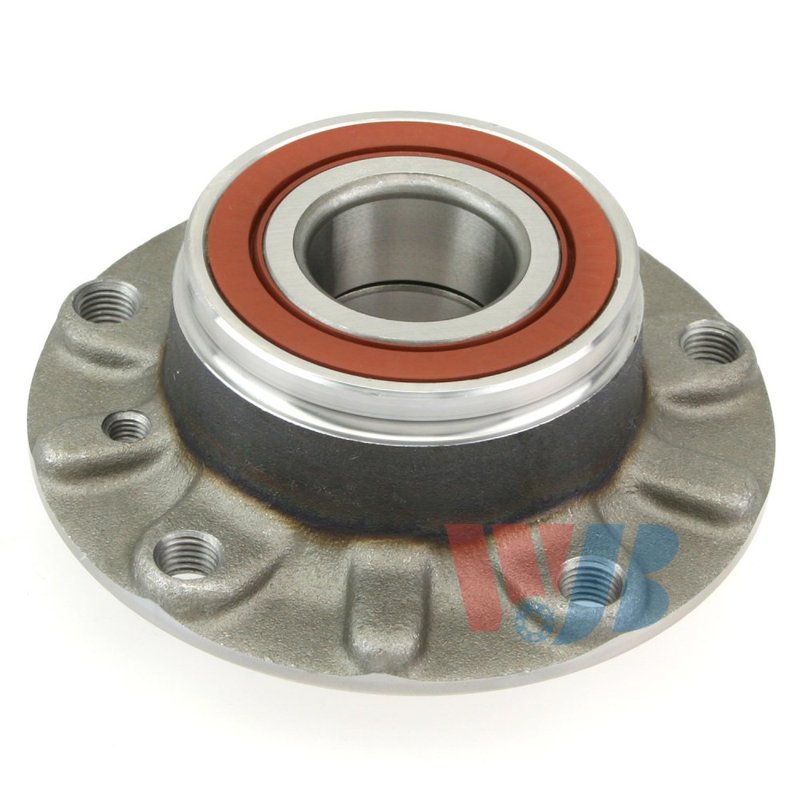

InMotion WA513171 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for BMW 740i and 750iL

InMotion WA513171 is a front wheel bearing and hub assembly built for select BMW applications with OE-based dimensions and application-specific fitment. It is engineered as a direct replacement for the original front hub on BMW 740i, 740iL, and 750iL models, with precision manufacturing focused on proper fit, performance, and service life.

• Front wheel bearing and hub assembly for BMW driveline and axle service
• Wheel stud quantity: 5
• Wheel pilot diameter: 72.5 mm
• Brake pilot diameter: 79.0 mm
• Hub pilot diameter: 81.7 mm
• Flange diameter: 139.0 mm
• Bolt circle diameter: 120.0 mm / 4.72 in
• Anti-lock brake sensor included: No
• OE-data-based dimensions for accurate replacement fitment

Fitment Details

• Fits 1995 BMW 740i, front.
• Fits 1997-2001 BMW 740i, front.
• Fits 1995-2001 BMW 740iL, front.
• Fits 1995-2001 BMW 750iL, front.

Use InMotion WA513171 when replacing a worn front hub assembly on BMW 740i, BMW 740iL, or BMW 750iL vehicles. This part cross-references common OE-style hub assembly applications for the same front axle service. The hub is manufactured using high-precision processes and strict quality-control criteria, with measurements derived from OE data to support correct wheel mounting and bearing operation.

Common Problems This Part Addresses

• Front wheel play or looseness from hub wear
• Noise from a deteriorated wheel bearing and hub assembly
• Improper wheel mounting caused by incorrect hub dimensions
• Vibration related to hub or bearing wear at the front axle
• Service replacement for a damaged or corroded front hub assembly

Installation Notes

Confirm front-axle fitment by matching the vehicle year, model, and hub dimensions before installation. Verify the 5-stud pattern, 120.0 mm bolt circle, and pilot diameters against the original part. Because the ABS sensor is not included, reuse or service the vehicle’s existing sensor arrangement as required by the application.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fitment on the listed BMW applications. Part number WA513171 is built as a direct replacement for the original front wheel bearing and hub assembly on the specified 7 Series models.
