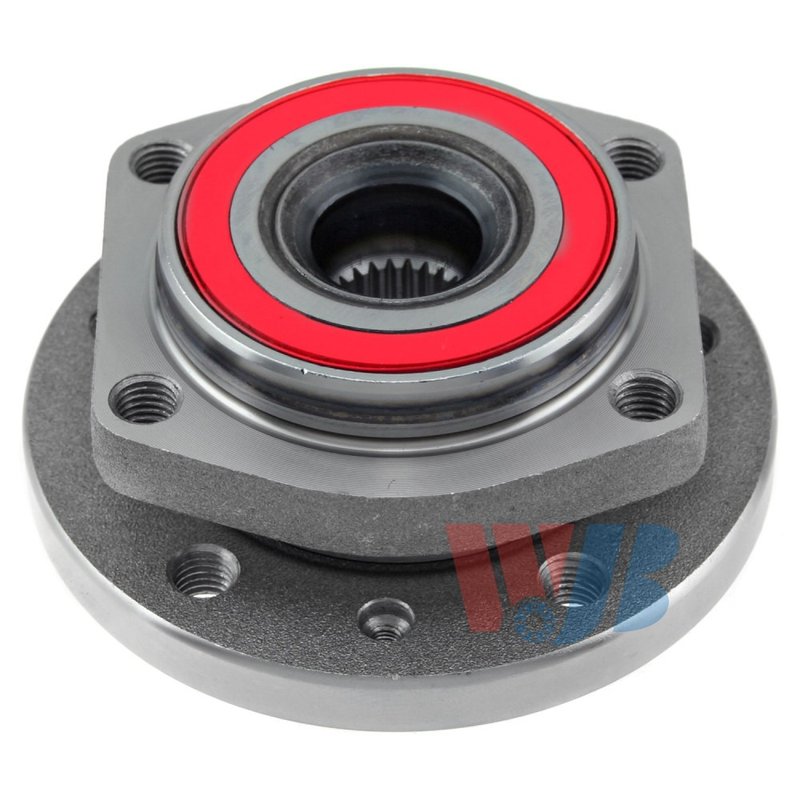

InMotion WA513174 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Volvo

The InMotion WA513174 is a front wheel bearing and hub assembly built for direct replacement on select Volvo applications. It is engineered from OE data and measurements to support proper fitment, consistent performance, and long service life on the front axle.

Compatible with 1994-1997 Volvo 850, front; 1998 Volvo C70, front; 1998 Volvo S70, front; and 1998 Volvo V70, front. The WA513174 is a practical choice when servicing a worn or noisy front hub on these vehicles.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• OE-based design for accurate fitment and installation alignment
• 26-spline hub configuration
• 5 wheel studs and 4 flange bolt holes
• Rectangular flange shape with 43.0 mm flange offset
• Hub pilot diameter: 83.4 mm
• Wheel pilot diameter: 64.3 mm
• Brake pilot diameter: 68.0 mm
• Bolt circle diameter: 108.0 mm / 4.25 in.
• ABS sensor not included

Detailed Description

InMotion WA513174 is manufactured using high-precision processes and strict quality-control standards to deliver a front hub assembly that matches the original application. The design uses OE data and measurements to help ensure correct wheel mounting, brake interface dimensions, and hub geometry for Volvo 850, C70, S70, and V70 front-wheel service. This part number, WA513174, is intended for standard-grade front applications and supports a clean replacement when the original hub assembly is worn or damaged.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Front wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• Uneven wheel rotation caused by hub wear
• Damaged or worn front hub mounting surfaces
• Restoring proper wheel and brake alignment after hub failure

Installation Notes

Verify front-position fitment before installation and confirm the hub dimensions against the original part. Because the ABS sensor is not included, reuse or transfer the vehicle’s existing sensor setup as required by the application. Always inspect related components such as the axle spline, brake hardware interface, and mounting surfaces for wear before completing the repair.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fit and durability. Each unit is built for the specified Volvo front applications and is intended as a direct replacement for the original part.
