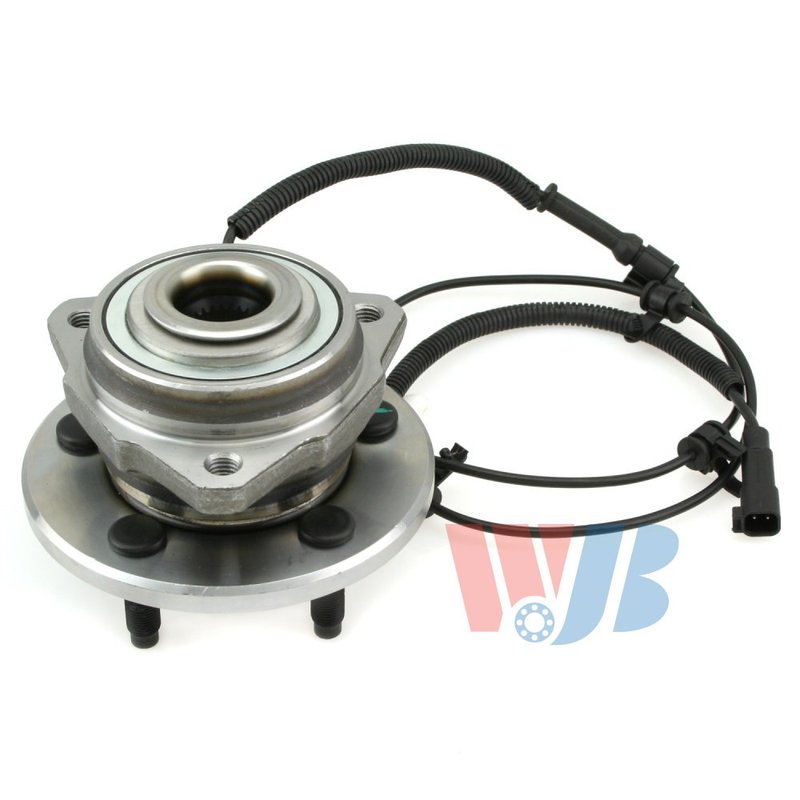

InMotion WA513176 Wheel Bearing and Hub Assembly - Front Left

Front Left Wheel Bearing Hub Assembly

InMotion WA513176 is a front left wheel bearing and hub assembly for the 2002-2007 Jeep Liberty. Built to OE measurements and application-specific dimensions, it is made for direct replacement service on the designated vehicle fitment.

• Fits 2002-2007 Jeep Liberty, front left
• 27-spline hub design
• 5 wheel studs with 3 flange bolt holes
• ABS sensor included
• Triangular flange shape
• Bolt circle diameter: 114.3 mm
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 71.9 mm
• Hub pilot diameter: 93.9 mm
• Flange offset: 53.8 mm
• Flange diameter: 153.5 mm

OE-Style Fitment and Construction

This InMotion wheel bearing and hub assembly is engineered from OE data and measurements to match the original mounting and interface points on the Jeep Liberty front left position. The precision-built hub assembly supports proper wheel location, bearing function, and ABS sensor integration for 2002-2007 Jeep Liberty service work. Part number WA513176 is a direct replacement choice for technicians and DIY repairs focused on restoring front-end driveline and hub performance.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Wheel bearing noise from the front left corner
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel rotation or rough hub operation
• Replacement after hub or bearing wear on a Jeep Liberty

Installation Notes

Verify the front left position, spline count, bolt pattern, and sensor configuration before installation. Confirm the 114.3 mm bolt circle, 5-stud layout, and 27-spline interface match the vehicle before assembly. Proper torque procedures and clean mounting surfaces help ensure correct hub seating and bearing life.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria and application-specific OE-based measurements to support fitment, performance, and longevity. Part number WA513176 is built as a direct replacement for the listed Jeep Liberty application.
