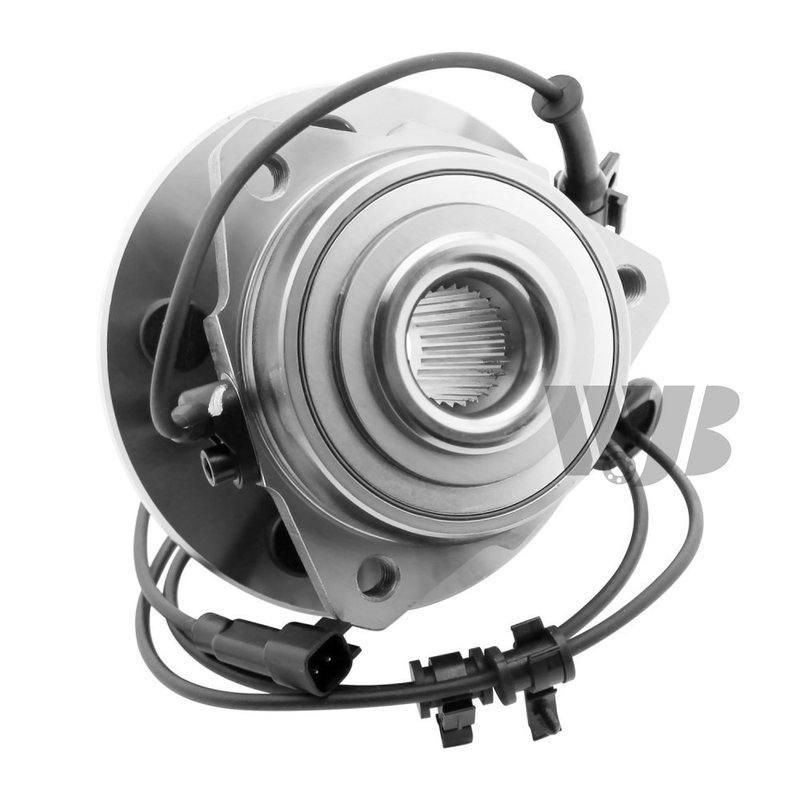

InMotion WA513177HD Wheel Bearing and Hub Assembly - Front Right

Front Right Wheel Hub Assembly for Jeep Liberty

Restore smooth wheel rotation and dependable ABS performance with this InMotion wheel bearing and hub assembly. Built for the front right position, part number WA513177HD is a direct replacement for 2002-2007 Jeep Liberty models and is engineered from OE data for accurate fitment.

• Fits 2002-2007 Jeep Liberty, front right
• Part number WA513177HD for easy identification
• 27-spline hub design
• 5 wheel studs with 114.3 bolt circle diameter
• 3 flange bolt holes and triangular flange shape
• ABS sensor included
• Hub pilot diameter: 100.1 mm
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 71.9 mm
• Flange offset: 53.8 mm
• Flange diameter: 153.5 mm

Built for OE-Style Fitment

The InMotion WA513177HD wheel bearing and hub assembly is manufactured with precision processes and strict quality control to match the original application. It is designed as a direct replacement for the factory hub on Jeep Liberty front right applications, with dimensions and measurements based on OE data to support proper fit, performance, and service life. If you are replacing a worn Jeep Liberty front right hub assembly, WA513177HD provides the correct configuration for the listed vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Wheel bearing noise from the front right hub area
• Excessive wheel play or looseness
• ABS warning light caused by a failed hub sensor assembly
• Uneven hub wear from a damaged original unit
• Vibration or rough rotation at the wheel end

Installation Notes and Tips

Confirm the front right position before installation and verify the 27-spline, 5-stud, 114.3 mm bolt circle configuration matches the vehicle. Inspect the mating surfaces, axle interface, and brake components during service, and follow factory torque specifications during installation. Because the ABS sensor is included, make sure the electrical connection is routed and secured correctly after mounting.

Quality Assurance

InMotion manufactures this hub assembly using OE measurements and controlled production standards to support consistent fitment and dependable operation. Part number WA513177HD is built for the specified Jeep Liberty applications and is intended as a direct replacement for the original front right hub assembly.
