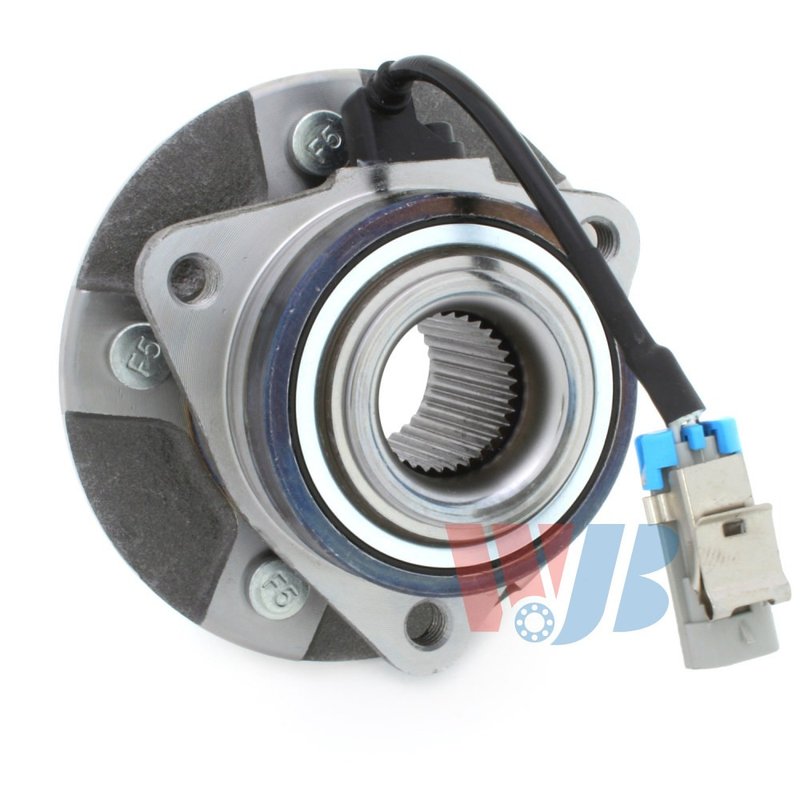

InMotion WA513189 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

Restore smooth front-wheel operation with this InMotion wheel bearing and hub assembly, part number WA513189. Built for direct replacement use on select Saturn Vue, Chevrolet Equinox, and Pontiac Torrent front applications, it is engineered from OE data to match the original fit and performance requirements.

This hub assembly is designed with a 33-spline interface, 5 wheel studs, a triangular flange shape, and integrated ABS sensor provision. The precision-machined hub uses a 70.1 mm wheel pilot diameter, 70.6 mm brake pilot diameter, 90.2 mm hub pilot diameter, and 150.0 mm flange diameter with a 115.0 mm bolt circle to support proper wheel and brake alignment.

• Part number WA513189 for front wheel bearing and hub replacement
• 33 spline quantity for the specified driveline application
• 5 wheel studs with 3 flange bolt holes
• Integrated anti-lock brake sensor included
• Triangular flange shape with 42.0 mm flange offset
• OE-data-based dimensions for fitment, performance, and longevity

Application Details

Compatible with front hub replacement needs on 2002-2007 Saturn Vue, 2005-2006 Chevrolet Equinox, and 2006 Pontiac Torrent. Use WA513189 when servicing a worn or noisy front wheel bearing and hub assembly on these standard-grade applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Front wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to the hub sensor interface
• Uneven wheel rotation caused by hub wear
• Vibration or roughness from a deteriorated front hub assembly

Installation Notes

Verify spline count, bolt circle diameter, flange dimensions, and sensor configuration before installation. Clean the mounting surface, inspect related brake and suspension components, and torque fasteners to the vehicle manufacturer’s specifications. Confirm proper ABS operation after installation on Saturn Vue, Chevrolet Equinox, or Pontiac Torrent front applications.

Quality Assurance

InMotion manufactures these hub assemblies with high-precision processes and strict quality-control criteria. Each unit is built to the listed OE-based measurements for the designated application, supporting accurate fitment and dependable service life.
