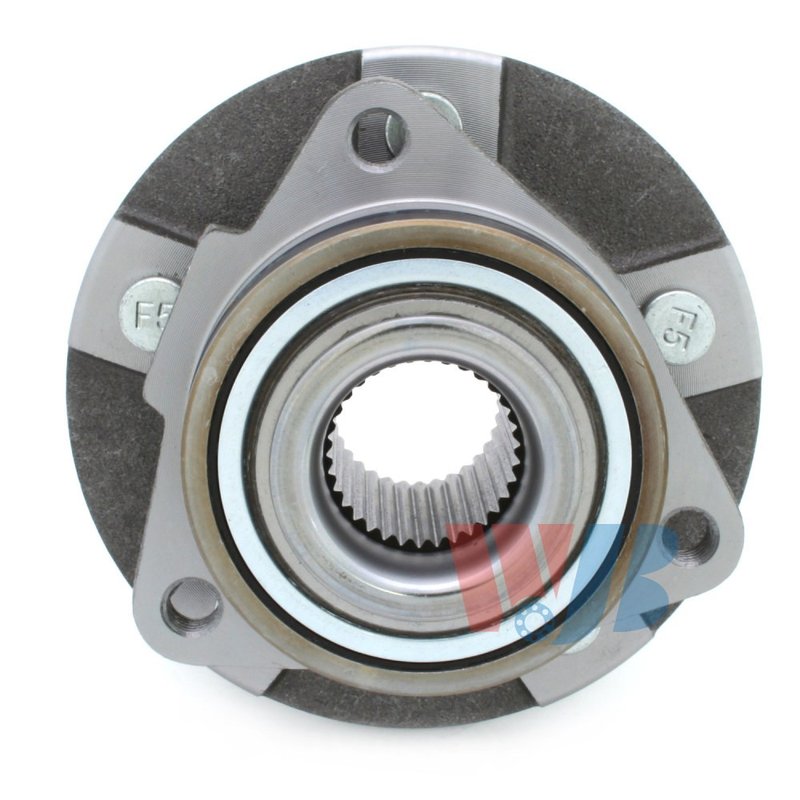

InMotion WA513190 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA513190 is a front wheel bearing and hub assembly built for direct replacement service on select Saturn, Pontiac, and Chevrolet applications. It is engineered from OE data and measurements to match the original fit, performance, and service life expectations for the vehicle.

This front hub assembly is designed for 2002-2007 Saturn Vue, front; 2006 Pontiac Torrent, front; and 2005 Chevrolet Equinox, front. The WA513190 uses a 33-spline design, a 5-stud wheel pattern, and a triangular flange shape for the specified applications.

• Part number: WA513190
• Front wheel bearing and hub assembly
• 33 spline quantity
• 5 wheel studs
• 3 flange bolt holes
• Flange diameter: 150.0 mm
• Bolt circle diameter: 115.0 mm / 4.53 in
• Wheel pilot diameter: 70.1 mm
• Brake pilot diameter: 70.6 mm
• Hub pilot diameter: 90.2 mm
• Flange offset: 42.0 mm
• Anti-lock brake sensor not included

OE-Style Fitment and Construction

InMotion manufactures this hub assembly with high-precision processes and strict quality-control standards to support consistent fitment on the listed vehicles. For shoppers searching for a front wheel bearing hub assembly for 2005 Chevrolet Equinox, 2006 Pontiac Torrent, or 2002-2007 Saturn Vue, WA513190 provides the dimensional and spline specifications needed for the correct front axle application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Uses

• Front wheel bearing noise or rough rotation
• Excessive play in the hub assembly
• Wheel vibration related to hub wear
• Uneven wheel mounting or stud-related service issues
• Restoring proper front hub function after wear or damage

Installation Notes

Confirm the vehicle’s front application, spline count, bolt pattern, and pilot diameters before installation. This assembly does not include an anti-lock brake sensor, so reuse or source the correct sensor arrangement for the vehicle as needed. Verify all mounting surfaces are clean and inspect related suspension and brake components during service.

Quality Assurance

InMotion builds this wheel bearing and hub assembly using OE-based measurements and controlled manufacturing processes to help ensure accurate fitment and dependable service on the listed applications.
