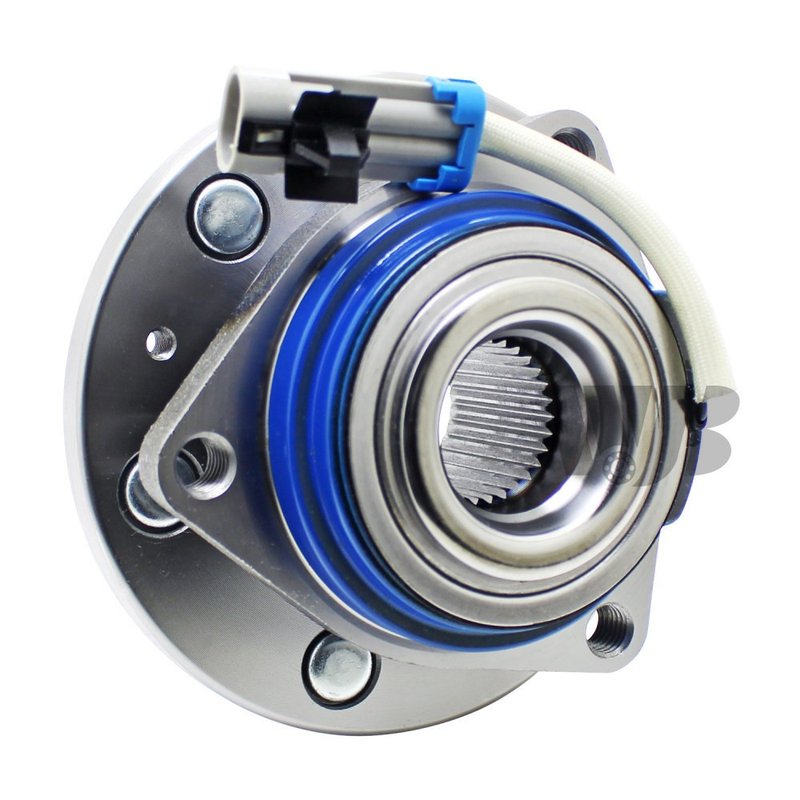

InMotion WA513198HD Wheel Bearing and Hub Assembly - Front
Front Wheel Bearing Hub Assembly for Cadillac SRX
InMotion WA513198HD is a new front wheel bearing and hub assembly built for 2004-2009 Cadillac SRX models. It is engineered from OE data for direct replacement fitment, with a ball bearing design, integrated ABS sensor, and a 30-spline driven hub layout.
- Fits 2004-2009 Cadillac SRX, front
- Part number: WA513198HD
- New wheel bearing and hub assembly
- Ball bearing type for driven front applications
- Integrated ABS sensor with tone ring
- 30 spline quantity
- 6 flange bolts included and 6 lug bolts included
- 3 mounting bolts to knuckle
- Flange bolt thread size: M12-1.5
- Lug bolt thread size: M12-1.75
Built to OE Dimensions
This InMotion hub assembly is manufactured using precise measurements and quality-control standards to match the original front hub on the Cadillac SRX. Key dimensions include a 70.6 mm hub pilot diameter, 145.5 mm flange diameter, 42.01 mm flange offset, and a 115 mm hub centerbore diameter. The ABS connector uses a cover-style shape, and the assembly includes a 47-tooth ABS sensor ring for accurate wheel speed signal transfer.
This part cross-references Timken HA590078 for the same application.
Common Problems This Part Can Address
- Front wheel bearing noise or growling
- Excessive hub play or looseness
- ABS warning light caused by hub sensor issues
- Uneven wheel speed signal readings
- Vibration or rough rotation at the front wheel
Installation Notes and Tips
Verify front fitment by year and position before installation. Confirm the 30-spline driven hub configuration, M12-1.5 flange bolt thread, and M12-1.75 lug bolt thread match the original assembly on your Cadillac SRX. Inspect the knuckle mounting surface, axle interface, and ABS connector routing before final assembly.
Quality Assurance
InMotion manufactures this hub assembly with OE-based engineering data and strict quality-control criteria to support proper fit, performance, and service life. WA513198HD is a new replacement part made for direct installation on the specified Cadillac SRX front application.
| Brand | InMotion |
| Part Number | WA513198HD |
| Spline Quantity | 30 |
| Hub Pilot Diameter | 2.78 |
| Hub Pilot Diameter | 70.599999999999994 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | Yes |
| Bearing Type | Ball |
| Flange Offset | 1.65 |
| Flange Offset | 42.01 |
| Flange Diameter | 145.5 |
| Flange Diameter | 5.73 |
| Abs Connector Shape | Cover |
| Abs Ring Type | Tone ring |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | M12-1.5 |
| Hub Centerbore Diameter (in) | 4.53 |
| Hub Centerbore Diameter (mm) | 115 |
| Lug Bolt Thread Size | M12-1.75 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 47 |
| Number Of Flange Bolts Included | 6 |
| Number Of Lug Bolts Included | 6 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 4.6399999999999997 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Cadillac | SRX | AWD | Front | Premium Grade |
| 2008 | Cadillac | SRX | AWD | Front | Premium Grade |
| 2007 | Cadillac | SRX | AWD | Front | Premium Grade |
| 2006 | Cadillac | SRX | AWD | Front | Premium Grade |
| 2005 | Cadillac | SRX | AWD | Front | Premium Grade |
| 2004 | Cadillac | SRX | AWD | Front | Premium Grade |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
