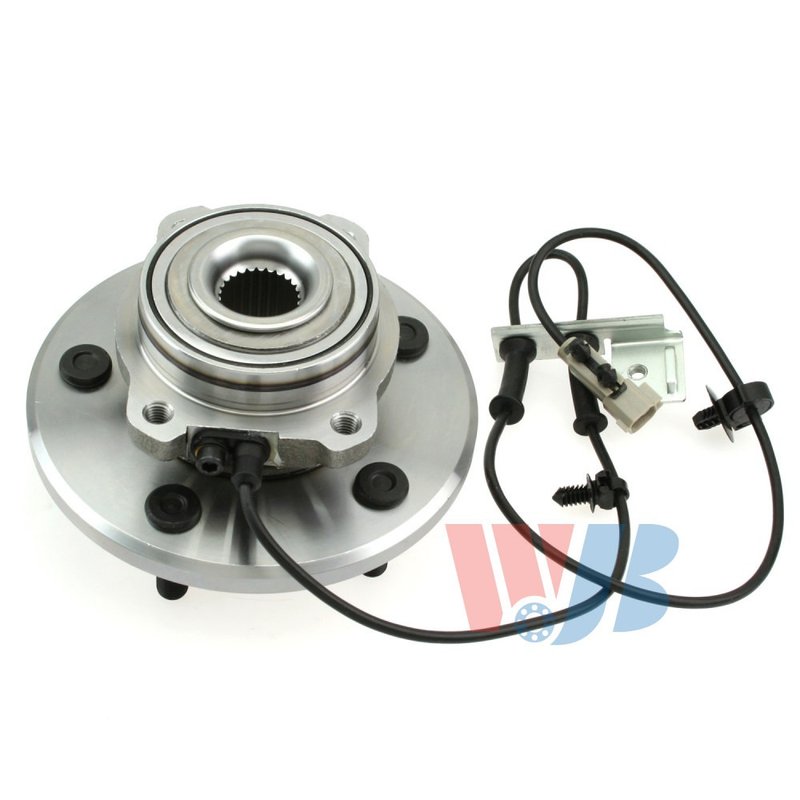

InMotion WA513201 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Pacifica

InMotion WA513201 is a front wheel bearing and hub assembly built for 2004-2006 Chrysler Pacifica models. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and strict quality control to support proper wheel mounting, smooth rotation, and long service life.

• Fits 2004-2006 Chrysler Pacifica, front
• Part number: WA513201
• 26-spline hub design
• 5 wheel studs with a 4-bolt flange pattern
• Integrated ABS sensor included
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 81.9 mm
• Hub pilot diameter: 84.4 mm
• Bolt circle diameter: 127.0 mm (5.0 in)
• Flange diameter: 166.9 mm with modified flange shape

OE-Style Fitment and Construction

This wheel bearing and hub assembly is made to match the original application for the Chrysler Pacifica front axle. The design uses OE reference data to help maintain correct alignment at the wheel hub, consistent brake interface dimensions, and reliable ABS sensor integration. If you are replacing a worn front hub on a 2004, 2005, or 2006 Chrysler Pacifica, WA513201 provides the dimensional details needed for a direct replacement approach.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Excessive hub play or looseness
• ABS warning light caused by a failed hub sensor
• Uneven wheel mounting due to hub wear
• Vibration from a deteriorated front hub assembly

Installation Notes and Tips

Confirm the vehicle is a 2004-2006 Chrysler Pacifica, front application before ordering. Compare spline count, bolt circle diameter, flange dimensions, and sensor configuration to the original part before installation. Clean the mounting surface, inspect related brake and axle components, and torque fasteners to factory specifications during service.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control criteria. The part is built as an OE-data-based replacement for the designated application, with attention to fitment, performance, and durability.
