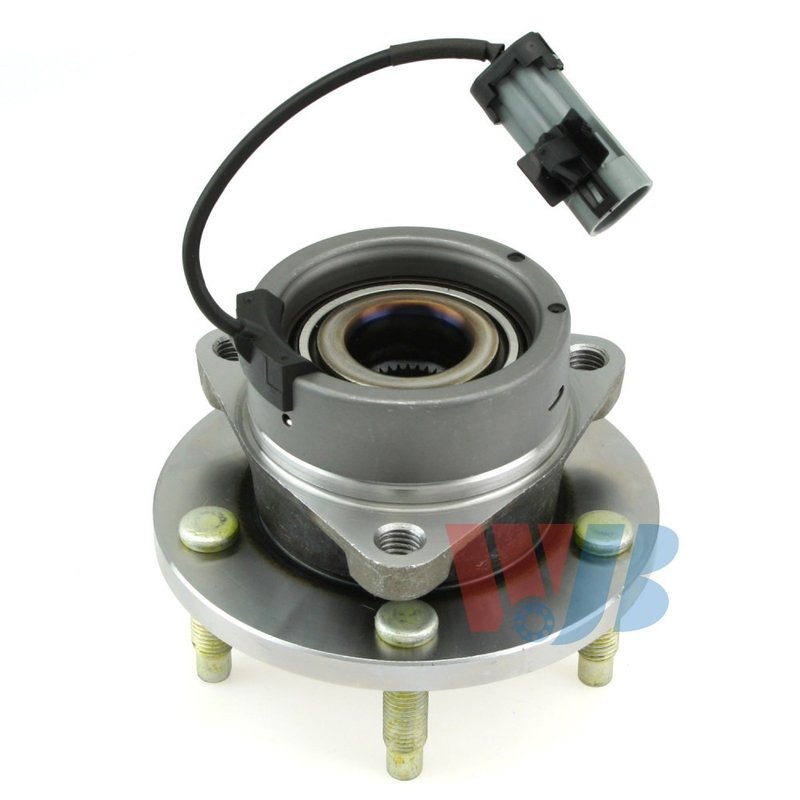

InMotion WA513206 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for GM Compact Cars

The InMotion WA513206 wheel bearing and hub assembly is built for front-end service on select Chevrolet, Pontiac, and Saturn applications. It is engineered from OE data and measurements for direct replacement fitment, with ABS sensor integration and hub dimensions matched to the original application.

Key Features

• Front wheel bearing and hub assembly for driveline and axle service
• 33-spline design with 5 wheel studs
• ABS sensor included
• 3-bolt flange design with modified flange shape
• Wheel pilot diameter: 65.0 mm
• Brake pilot diameter: 65.4 mm
• Hub pilot diameter: 85.0 mm
• Flange diameter: 136.9 mm
• Bolt circle diameter: 110.0 mm (4.33 in.)
• Flange offset: 39.0 mm

Detailed Description

InMotion WA513206 is a front wheel bearing and hub assembly designed for direct replacement on select Chevrolet HHR, Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Pontiac Pursuit models. The assembly is manufactured with strict quality-control standards and uses OE-based measurements to support proper fitment, bearing performance, and service life. For buyers searching for a front wheel hub assembly for a 2006-2011 Chevrolet HHR or a 2005-2010 Chevrolet Cobalt, WA513206 provides the correct hub architecture for the listed applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2006-2011 Chevrolet HHR, front, Standard Grade
• Fits 2005-2010 Chevrolet Cobalt, front, Standard Grade
• Fits 2007-2010 Pontiac G5, front, Standard Grade
• Fits 2003-2007 Saturn Ion, front, Standard Grade
• Fits 2005-2006 Pontiac Pursuit, front, Standard Grade

Common Repair Uses

• Front wheel bearing noise or roughness
• ABS warning light caused by a failing hub sensor assembly
• Wheel play or looseness at the hub
• Uneven front-end rotation or vibration from hub wear
• Replacement after corrosion or bearing seizure

Installation Notes and Tips

Verify spline count, bolt circle, flange offset, and pilot diameters before installation. Confirm the ABS sensor connection matches the vehicle harness and inspect the mating knuckle, axle, and mounting surfaces for wear or corrosion. Torque fasteners to the vehicle manufacturer’s specifications and check wheel bearing preload and ABS operation after installation. WA513206 is a front-position assembly only.

Quality Assurance

Each InMotion WA513206 hub assembly is produced using OE data and dimensional checks to support accurate fitment on the listed Chevrolet, Pontiac, and Saturn models. The part is manufactured under strict quality-control criteria for consistent replacement performance.
