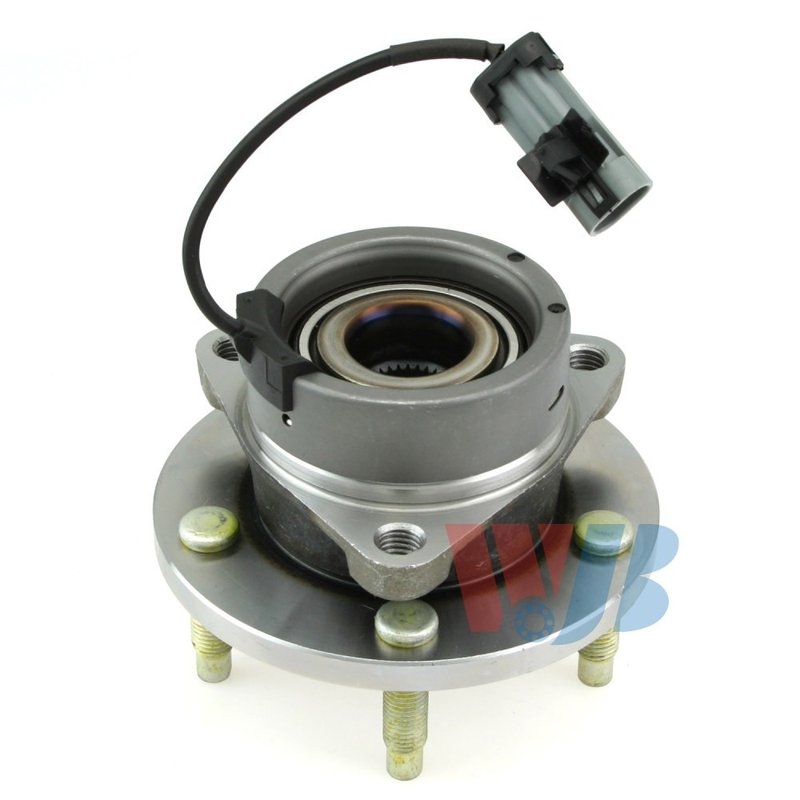

InMotion WA513206HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA513206HD is a new front wheel bearing and hub assembly built for direct replacement service on select GM compact cars and crossovers. It is engineered from OE data for fitment, performance, and service life, with an integrated ABS sensor, tone ring, and wiring harness for a complete front hub solution.

• Direct replacement front hub assembly for driven applications
• Ball bearing design for smooth wheel rotation
• 33-spline hub with 5-bolt flange pattern
• Integrated ABS sensor included with tone ring
• Wiring harness included; 7-inch harness length
• New assembly manufactured to strict quality-control criteria
• Cross-references MOOG 513206, SKF BR930433, and Timken HA590086 for the same application

Fitment Details

Compatible With front applications on these vehicles:

• Fits 2006-2011 Chevrolet HHR, front
• Fits 2005-2010 Chevrolet Cobalt, front
• Fits 2007-2010 Pontiac G5, front
• Fits 2003-2007 Saturn Ion, front
• Fits 2005-2006 Pontiac Pursuit, front

Product Overview

WA513206HD is built as a wheel bearing and hub assembly for the front axle, using a ball bearing design, 47-tooth ABS tone ring, and a 5-bolt flange with M12-1.5 thread size. The hub pilot diameter measures 65.4 mm, the flange diameter is 137 mm, and the flange offset is 39 mm. With OE-based measurements and application-specific engineering, this InMotion hub assembly is intended to match the original mounting and sensor interface on Chevrolet HHR, Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Pontiac Pursuit front positions. The part number WA513206HD is also a useful reference when comparing replacement options for the same platform.

Common Repair Symptoms

• Front wheel bearing noise or growling
• ABS warning light caused by hub sensor issues
• Wheel play from a worn hub assembly
• Uneven front-end rotation or vibration
• Damaged flange, sensor ring, or mounting interface

Installation Notes

Verify spline count, flange bolt pattern, hub pilot diameter, and ABS connector shape before installation. This assembly uses a 3-bolt knuckle mounting pattern, 5 lug bolts, and an ABS connector cover style. Always confirm front-position fitment by year, make, and model before service, and inspect the mating knuckle and axle components for wear or damage during replacement.

Quality Assurance

InMotion manufactures these hub assemblies with high-precision processes and strict quality-control standards. Each unit is built from OE data and measurements to support correct fitment, consistent performance, and long-term durability in the specified applications.
