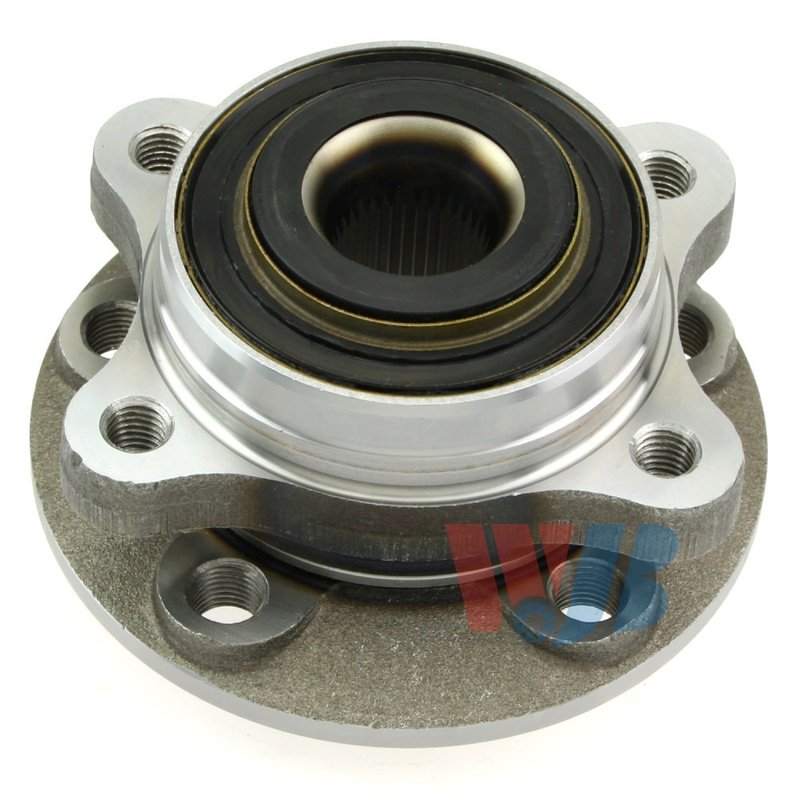

InMotion WA513208 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Volvo XC90

Restore smooth wheel rotation and stable front-end performance with this InMotion wheel bearing and hub assembly, part number WA513208. It is built as a direct replacement for the original front hub on the 2003-2007 Volvo XC90, with OE-based measurements for fitment, performance, and service life.

Key Features

• Direct replacement front wheel bearing and hub assembly
• Fits 2003-2007 Volvo XC90, front
• 36-spline hub design
• 5 wheel studs with 4 flange bolt holes
• Modified flange shape with 43.1 flange offset
• Hub pilot diameter: 87.5 mm
• Wheel pilot diameter: 66.9 mm
• Brake pilot diameter: 68.0 mm
• Bolt circle diameter: 108.0 mm / 4.258 in
• ABS sensor not included

Detailed Description

InMotion WA513208 is engineered from OE data and measurements to match the original front hub assembly used on the Volvo XC90. The precision-built design supports proper wheel mounting, brake alignment, and consistent hub operation, making it a practical replacement for worn or noisy front wheel bearing and hub components on 2003-2007 Volvo XC90 models. This part number WA513208 is specified for the front position and is built to the listed hub dimensions and bolt pattern.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Front wheel bearing noise or growling
• Excessive wheel play or looseness
• Vibration from a worn hub assembly
• Improper wheel mounting due to hub wear
• Brake and wheel alignment issues related to hub damage

Installation Notes and Tips

Confirm the front position, 36-spline count, 5-stud pattern, and 108.0 mm bolt circle before installation. Verify that the vehicle does not require an ABS sensor in the hub assembly, since this unit does not include one. Inspect the mating surfaces, axle interface, and brake components during replacement to ensure proper seating and torque retention.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria and high-precision production methods. Each unit is built to the designated application using OE data and measurements to support correct fitment and dependable operation on the Volvo XC90.
