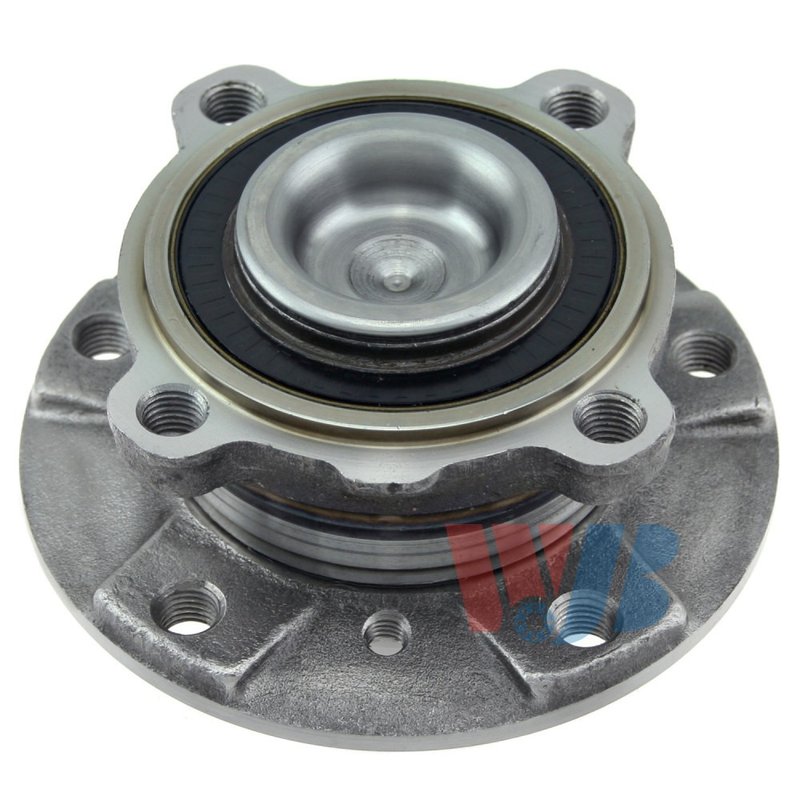

InMotion WA513210 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA513210 is a front wheel bearing and hub assembly built for precise OE-style fitment on select BMW applications. It is engineered from OE data and measurements, with an integrated ABS sensor and application-specific dimensions for dependable wheel support and consistent braking system alignment.

Key Features

• Front wheel bearing and hub assembly for direct replacement use
• Integrated anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• Wheel pilot diameter: 72.5 mm
• Brake pilot diameter: 79.0 mm
• Hub pilot diameter: 90.0 mm
• Bolt circle diameter: 120.0 mm (4.689 in)
• Flange diameter: 142.8 mm with 50.9 mm flange offset
• Modified trapezoid flange shape

Fitment Details

• Fits 2008-2011 BMW 528i, front, Standard Grade
• Fits 2008-2010 BMW 535i, front, Standard Grade
• Fits 2006-2010 BMW 550i, front, Standard Grade
• Fits 2006-2010 BMW 650i, front, Standard Grade
• Fits 2004-2007 BMW 525i, front, Standard Grade
• Fits 2004-2007 BMW 530i, front, Standard Grade
• Fits 2004-2005 BMW 545i, front, Standard Grade
• Fits 2004-2005 BMW 645Ci, front, Standard Grade

Detailed Description

WA513210 is manufactured as a direct replacement wheel hub assembly for select BMW 5 Series and 6 Series front applications, including BMW 525i, 530i, 528i, 535i, 545i, 550i, 645Ci, and 650i models. The assembly is produced with strict quality-control standards and uses OE-based measurements to support proper fit, wheel mounting accuracy, and long-term service life. The included ABS sensor helps maintain correct wheel speed signal integration for vehicles equipped with anti-lock braking systems.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Wheel bearing noise from the front hub area
• ABS warning light caused by a failing hub sensor
• Wheel play or looseness at the hub assembly
• Uneven braking feel related to hub or sensor wear
• Vibration or humming that increases with vehicle speed

Installation Notes and Tips

Confirm the vehicle’s year, model, and front position before installation. Verify flange dimensions, bolt circle diameter, and pilot diameters against the original hub assembly to ensure correct alignment with the wheel and brake components. Clean the mounting surface thoroughly and inspect related suspension and brake parts for wear before completing the repair.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and OE data to support consistent fitment and performance across the listed BMW applications. The part is built under strict quality-control criteria for direct replacement service.
