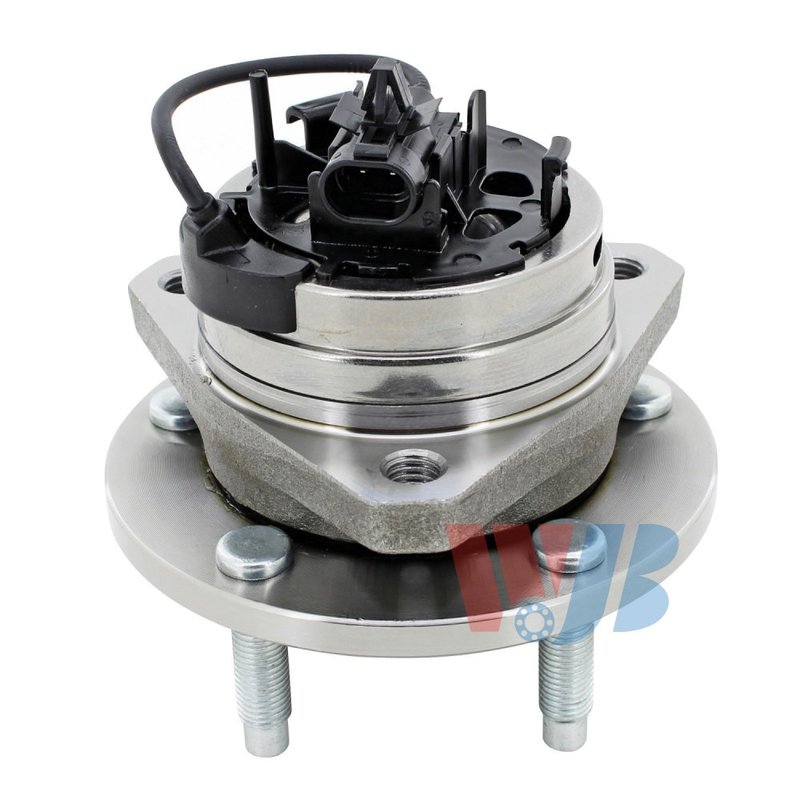

InMotion WA513214HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for GM Compact Cars

InMotion WA513214HD is a new front wheel bearing and hub assembly built for direct replacement service on select Chevrolet, Pontiac, and Saturn vehicles. It combines a ball bearing design, integrated ABS sensor, and OE-based measurements to support proper fitment on the listed applications.

• Direct replacement wheel bearing and hub assembly for front axle service
• Fits 2004-2012 Chevrolet Malibu, front
• Fits 2008-2010 Chevrolet Cobalt, front
• Fits 2008-2010 Chevrolet HHR, front
• Fits 2005-2010 Pontiac G6, front
• Fits 2007-2009 Saturn Aura, front
• 30-spline hub design with 5-bolt flange
• Integrated ABS sensor with tone ring and wiring harness included
• Ball bearing construction for driven front applications
• OE-style dimensions: 65.5 mm hub pilot diameter, 137 mm flange diameter, 39.1 mm flange offset

OE-Based Fit and Sensor Integration

WA513214HD is engineered from OE data and measurements to match the original hub assembly dimensions and mounting points. The unit uses a circular flange shape, M12-1.5 flange bolt thread, M12-1.75 lug bolt thread, and a 110 mm hub centerbore diameter for the specified front-wheel applications. This part cross-references Timken HA590070 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise such as humming or growling
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness or play from worn bearing components
• Uneven hub rotation or rough front-end wheel movement
• Corrosion or wear at the original front hub mounting points

Installation Notes

Confirm the vehicle year, make, model, and front position before ordering. Verify spline count, flange bolt pattern, and ABS connector style against the original part. Because this assembly includes an integrated ABS sensor and harness, inspect the connector routing and tone ring alignment during installation. WA513214HD is a new part and is intended as a direct replacement for the original front hub assembly on the listed Chevrolet Malibu, Chevrolet Cobalt, Chevrolet HHR, Pontiac G6, and Saturn Aura applications.

Quality Assurance

InMotion manufactures this hub assembly using strict quality-control standards and application-specific OE measurements to support fitment, performance, and service life. Part number WA513214HD is built for the confirmed front applications listed above.
