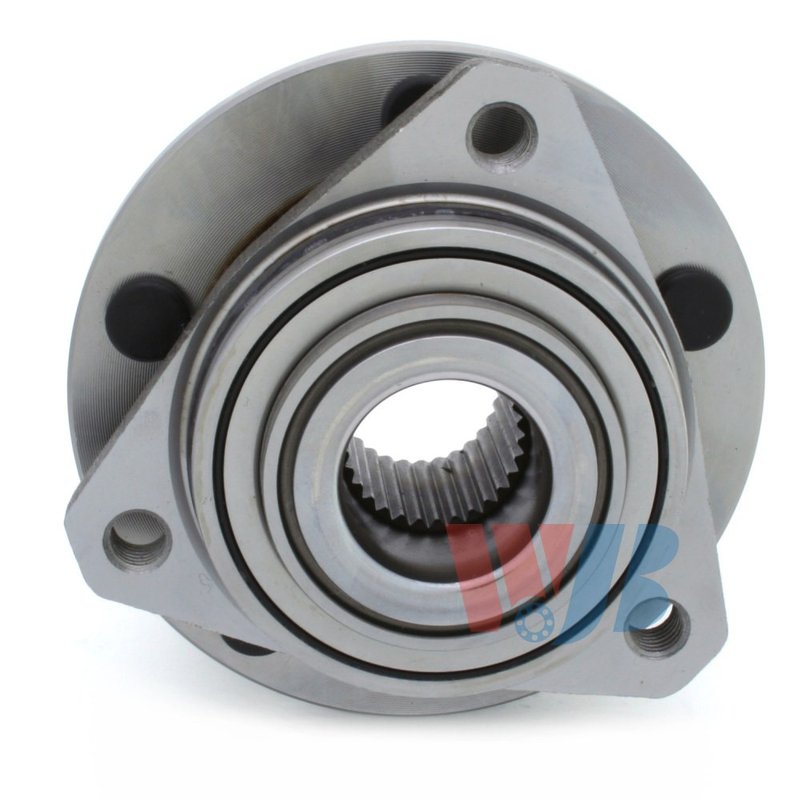

InMotion WA513215 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA513215 is a front wheel bearing and hub assembly built for direct replacement on select Chevrolet Malibu and Pontiac G6 applications. It is engineered from OE data and measurements to support proper fitment, wheel mounting, and long-term service life.

Fits 2004-2007 Chevrolet Malibu, front. Fits 2005-2007 Pontiac G6, front. This part number, WA513215, is a practical choice when replacing a worn front hub on these vehicles.

Key Features

• Front wheel bearing and hub assembly for driveline and axle service
• 30-spline design
• 5 wheel studs with a 4.33 in. bolt circle diameter
• 3 flange bolt holes for mounting
• Wheel pilot diameter: 65.0 mm
• Brake pilot diameter: 65.5 mm
• Hub pilot diameter: 87.8 mm
• Modified flange shape with 39.0 mm flange offset
• ABS sensor not included

Detailed Description

InMotion WA513215 is manufactured with high-precision processes and strict quality-control standards to deliver a direct-fit front hub assembly for the specified Malibu and G6 applications. The assembly is built using OE data and measurements, helping ensure correct alignment of the wheel mounting surface, pilot diameters, and bolt pattern for a proper replacement. The 5-stud, 110 mm bolt circle configuration and 30-spline design make this hub assembly a focused match for the listed vehicles.

For shoppers searching for a front wheel bearing hub assembly for 2004-2007 Chevrolet Malibu or 2005-2007 Pontiac G6, WA513215 provides the fitment details needed for a confident parts match. This part number, WA513215, is intended as a direct replacement for the original hub assembly on the listed front positions.

What This Part Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the front end
• Improper wheel mounting caused by hub wear
• Vibration related to hub or bearing deterioration
• Service replacement for damaged front hub components

Installation Notes and Tips

Confirm the vehicle year, make, model, and front position before ordering. Match the 30-spline count, 5-stud pattern, 110 mm bolt circle, and pilot diameters to the original part before installation. Because the ABS sensor is not included, transfer or source any required sensor components separately if your vehicle setup requires them.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fit and performance. The part is built for direct replacement use on the listed Chevrolet Malibu and Pontiac G6 front applications.
