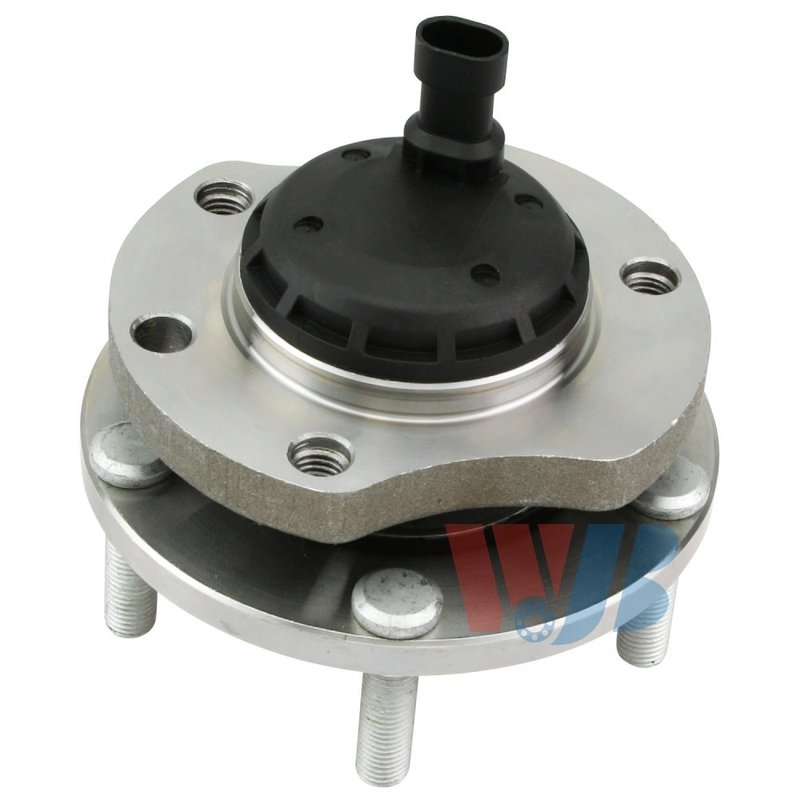

InMotion WA513217 Wheel Bearing and Hub Assembly - Front Left

Front Left Wheel Hub Assembly for Pontiac GTO

InMotion WA513217 is a front left wheel bearing and hub assembly engineered for 2004-2006 Pontiac GTO applications. Built from OE data and measurements, this hub assembly is made for direct replacement use where precise fitment, stable wheel support, and consistent bearing performance matter.

• Fits 2004-2006 Pontiac GTO, front left
• Wheel bearing and hub assembly for driveline and axle service
• 5 wheel studs with a 120.0 mm bolt circle diameter
• ABS sensor included
• Modified flange shape with 3 flange bolt holes
• Wheel pilot diameter: 69.5 mm
• Brake pilot diameter: 71.5 mm
• Hub pilot diameter: 76.0 mm
• Flange offset: 43.0 mm
• Flange diameter: 140.0 mm

Fitment and Application Details

This InMotion wheel hub assembly WA513217 is built for the front left position on the Pontiac GTO across 2004, 2005, and 2006 model years. The OE-based dimensions help ensure the hub seats correctly with the wheel, brake components, and ABS system on the specified application. If you are searching for a front left wheel bearing and hub assembly for Pontiac GTO 2004-2006, WA513217 matches the listed vehicle and position.

Common Problems This Part Can Address

• Wheel bearing noise from the front left corner
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting caused by worn hub surfaces
• Vibration or rough rotation from a damaged bearing assembly

Installation Notes and Tips

Confirm the vehicle is a 2004-2006 Pontiac GTO and verify the front left position before installation. Compare the flange bolt pattern, stud count, pilot diameters, and ABS sensor configuration against the removed part to ensure a proper match. Clean the mounting surface thoroughly and inspect related brake and suspension components during service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

InMotion manufactures these hub assemblies using high-precision processes and strict quality-control criteria. WA513217 is engineered from OE data and measurements to support correct fitment, performance, and service life for the specified Pontiac GTO application.
