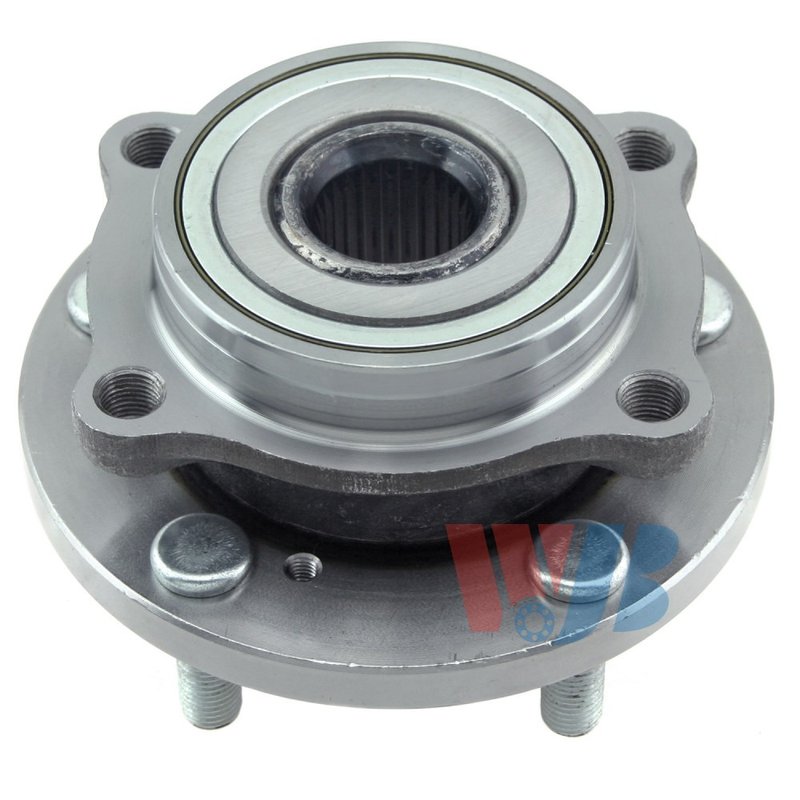

InMotion WA513219 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA513219 is a front wheel bearing and hub assembly built for direct replacement service on select Mitsubishi applications. It is engineered from OE data and measurements to match the original fit, performance, and service life expectations for the vehicle.

Compatible with front-wheel service on Mitsubishi Eclipse, Mitsubishi Galant, and Mitsubishi Endeavor applications, this hub assembly is manufactured with precise tolerances and strict quality-control standards.

Key Features

• Part number: WA513219
• Front wheel bearing and hub assembly
• 27-spline design
• 5 wheel studs
• 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in
• Hub pilot diameter: 86.2 mm
• Wheel pilot diameter: 67.0 mm
• Brake pilot diameter: 69.0 mm
• Flange diameter: 142.0 mm
• Flange offset: 40.6 mm
• Modified flange shape
• ABS sensor not included

Detailed Description

InMotion WA513219 is a front hub assembly designed as a direct replacement for the original unit on 2004-2012 Mitsubishi Galant, 2004-2012 Mitsubishi Eclipse, and 2004-2011 Mitsubishi Endeavor front applications listed below. The assembly is built using OE reference data to support correct fitment, stable wheel mounting, and consistent bearing operation. For shoppers searching for a front wheel bearing and hub assembly for Mitsubishi Eclipse, Galant, or Endeavor, WA513219 provides the key dimensions needed for accurate replacement selection.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• Uneven wheel mounting caused by hub wear
• Vibration or roughness related to bearing deterioration
• Replacement needs after hub or bearing service failure

Installation Notes and Fitment

Fits 2006-2012 Mitsubishi Eclipse, front.

Fits 2004-2012 Mitsubishi Galant, front.

Fits 2004-2008 Mitsubishi Endeavor, front.

Fits 2010-2011 Mitsubishi Endeavor, front.

Verify spline count, bolt circle diameter, flange dimensions, and ABS sensor requirements before installation. This assembly does not include an anti-lock brake sensor.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support proper fitment, performance, and longevity in the specified Mitsubishi front-wheel applications.
