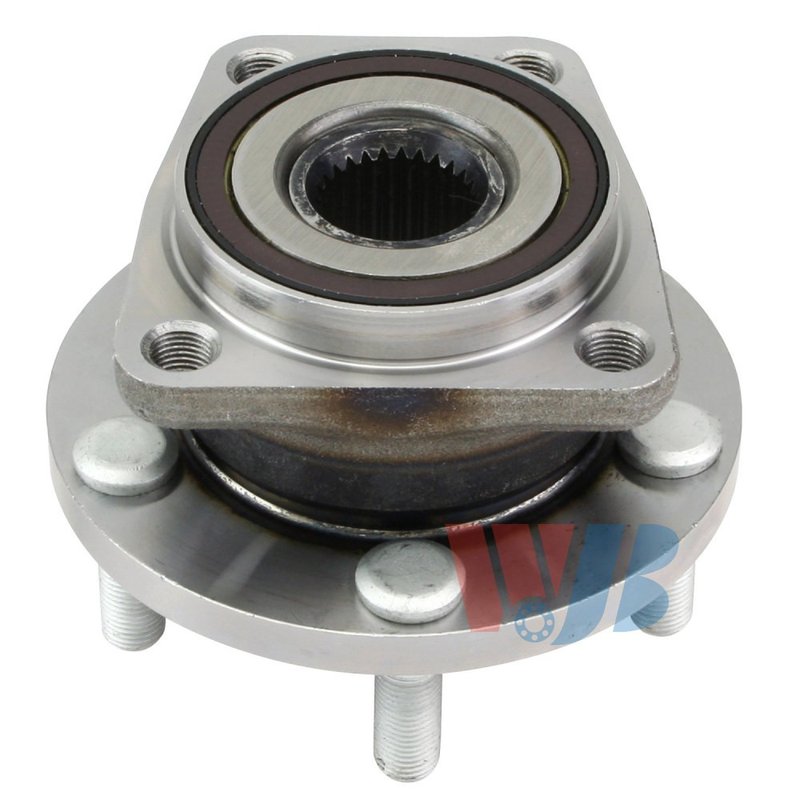

InMotion WA513220 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Subaru Legacy and Outback

The InMotion WA513220 wheel bearing and hub assembly is a direct replacement front hub built for 2005-2014 Subaru Legacy and 2005-2014 Subaru Outback applications. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

Key Features

• Front wheel bearing and hub assembly for Subaru Legacy and Subaru Outback
• Part number WA513220
• 27-spline design with 5 wheel studs
• 4 flange bolt holes, 100.0 mm bolt circle diameter
• Integrated ABS wheel speed sensor included
• Hub pilot diameter: 76.0 mm
• Wheel pilot diameter: 56.0 mm
• Brake pilot diameter: 58.0 mm
• Flange diameter: 124.0 mm with 49.0 mm offset

Detailed Description

InMotion manufactures the WA513220 hub assembly using high-precision processes and strict quality-control standards. This front wheel bearing and hub assembly is built as an OE-style replacement for Subaru Legacy and Subaru Outback models, with dimensions and mounting points matched to the original application for proper wheel location and dependable operation. The integrated ABS sensor supports vehicles equipped with anti-lock braking systems, while the 27-spline hub and 5-stud flange help maintain correct driveline and wheel mounting geometry. If you are replacing a worn front hub on a 2005-2014 Subaru Legacy or 2005-2014 Subaru Outback, WA513220 provides the correct fitment-focused replacement path. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or humming
• Excessive wheel play or looseness
• ABS warning light concerns related to the hub sensor
• Uneven wheel mounting or hub wear
• Vibration from a worn front hub assembly

Installation Notes and Tips

Fits 2005-2014 Subaru Legacy, front. Fits 2005-2014 Subaru Outback, front. Confirm spline count, flange dimensions, and ABS sensor configuration before installation. Inspect the mating surfaces, axle nut condition, and surrounding suspension components during replacement to help ensure proper hub seating and system operation.

Quality Assurance

InMotion builds this hub assembly with OE-based measurements and controlled manufacturing standards to support accurate fitment and consistent performance. The WA513220 is produced as a direct replacement part for the listed Subaru applications.
