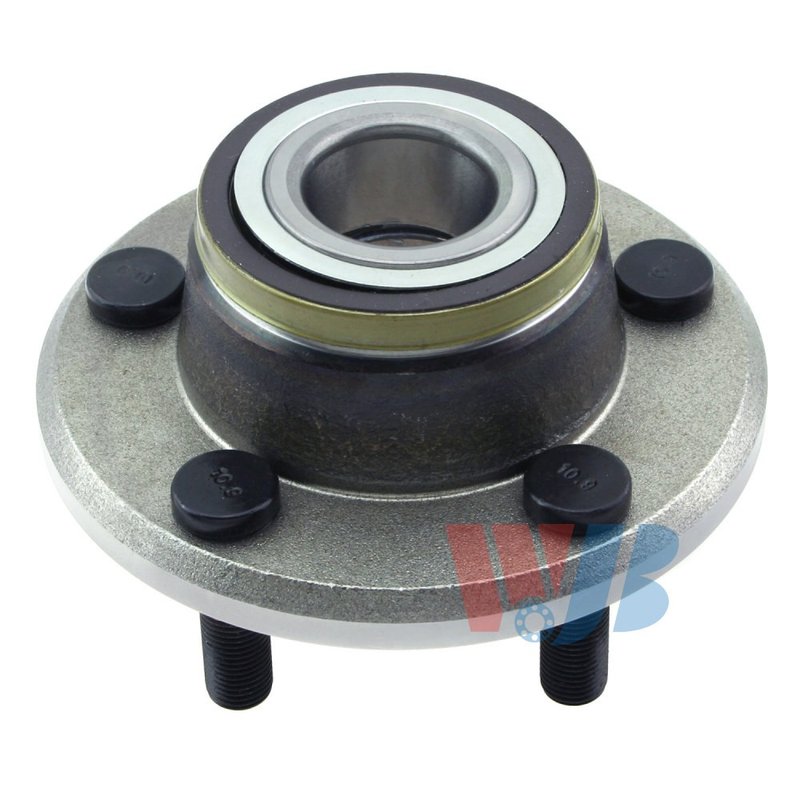

InMotion WA513224 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Chrysler and Dodge

InMotion WA513224 is a front wheel bearing and hub assembly built for select Chrysler and Dodge rear-wheel-drive platforms. It is engineered from OE data and measurements for direct replacement fitment on the front axle, with the ABS sensor included for applications that require it.

Key Features

• Front wheel bearing and hub assembly for select Chrysler 300, Dodge Challenger, Dodge Charger, and Dodge Magnum models
• Wheel stud quantity: 5
• Anti-lock brake sensor included: Yes
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 72.5 mm
• Flange diameter: 149.8 mm
• Bolt circle diameter: 115.0 mm
• Built using OE data and measurements for fitment, performance, and service life

Detailed Description

This InMotion wheel bearing and hub assembly, part number WA513224, is made for front-end service on 2005-2014 Chrysler 300, 2008-2014 Dodge Challenger, 2006-2014 Dodge Charger, and 2005-2008 Dodge Magnum models in standard grade applications. The assembly is manufactured to match the original part’s dimensions and mounting requirements, helping maintain proper wheel location, brake alignment, and ABS function. For buyers searching for a front wheel hub assembly for Chrysler 300 or Dodge Charger, WA513224 provides a direct replacement format with the sensor already included.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness at the front axle
• ABS warning light concerns related to a failed hub sensor
• Uneven brake rotor contact caused by hub runout
• Vibration or roughness traced to a worn front wheel bearing assembly

Installation Notes and Tips

Confirm the vehicle is a standard grade front application before ordering. Verify wheel pilot diameter, brake pilot diameter, bolt circle diameter, and flange dimensions against the original hub assembly. Clean the mounting surface thoroughly before installation and torque all fasteners to the vehicle manufacturer’s specifications. After installation, clear any stored ABS codes and road test the vehicle to confirm proper operation.

Quality Assurance

InMotion manufactures these hub assemblies with strict quality-control criteria and application-specific OE-based measurements to support proper fitment and long-term service. WA513224 is built as a direct replacement wheel bearing and hub assembly for the listed Chrysler and Dodge front applications.
