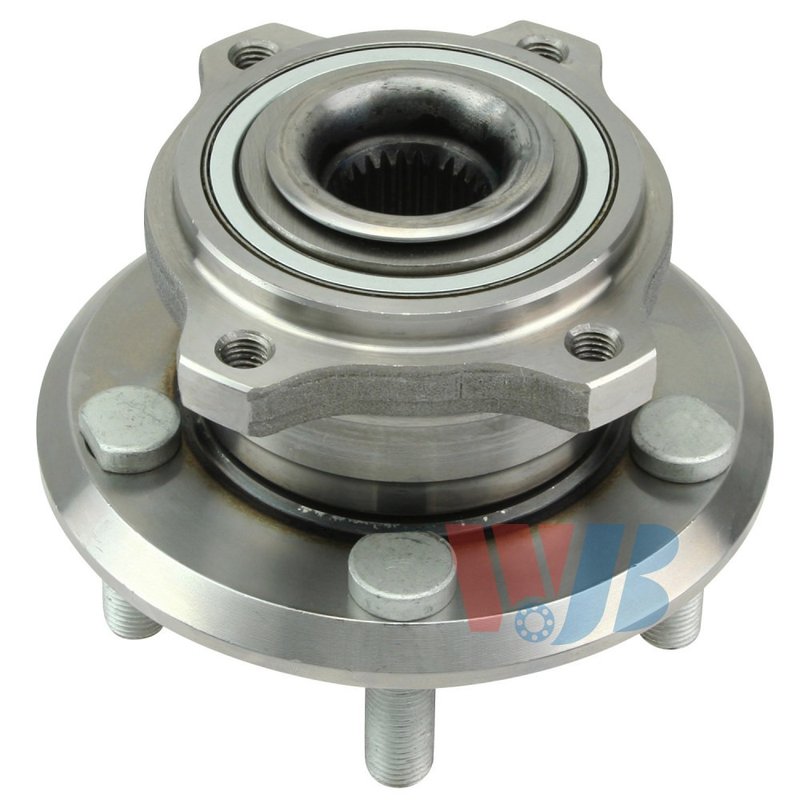

InMotion WA513225 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Chrysler and Dodge

The InMotion WA513225 wheel bearing and hub assembly is a direct replacement for front applications on select Chrysler and Dodge vehicles. Built from OE data and measurements, it is engineered for accurate fitment, stable wheel support, and long service life on Chrysler 300, Dodge Challenger, Dodge Charger, and Dodge Magnum models.

Key Features

• Part number: WA513225
• Front wheel bearing and hub assembly
• 27-spline design
• 5 wheel studs
• 4 flange bolt holes
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 72.5 mm
• Hub pilot diameter: 90.4 mm
• Flange diameter: 150.0 mm
• Bolt circle diameter: 115.0 mm / 4.527 in
• Rectangle flange shape with 60.3 flange offset
• ABS sensor not included

Detailed Description

InMotion WA513225 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions for the listed front-wheel applications. It is a direct replacement wheel hub assembly for 2005-2023 Chrysler 300, 2017-2023 Dodge Challenger, 2007-2023 Dodge Charger, and 2005-2008 Dodge Magnum models. The OE-based design helps maintain proper wheel mounting, brake alignment, and hub support, making it a practical choice for front-end service on these platforms. Part number WA513225 is also a useful reference when searching for a front wheel bearing hub assembly for Chrysler 300 or Dodge Charger applications.

Vehicle Fitment

• Fits 2005-2023 Chrysler 300, front, Standard Grade
• Fits 2017-2023 Dodge Challenger, front, Standard Grade
• Fits 2007-2023 Dodge Charger, front, Standard Grade
• Fits 2005-2008 Dodge Magnum, front, Standard Grade

Common Problems This Part Can Address

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness at the hub
• Uneven brake rotor seating caused by hub wear
• Vibration or roughness related to a worn front hub assembly
• Improper wheel mounting from damaged hub components

Installation Notes and Tips

Confirm front-position fitment before ordering and verify the 27-spline, 5-stud, and 4-bolt-hole configuration against the original part. Check wheel pilot, brake pilot, hub pilot, bolt circle diameter, and flange offset during installation to ensure proper alignment. Because the ABS sensor is not included, reuse or transfer the existing sensor setup as required by the vehicle configuration. For best results, inspect related suspension and brake components before completing the repair.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements and applies strict quality-control criteria during production. The result is a front wheel bearing and hub assembly built to match the designated applications for Chrysler and Dodge service work.
