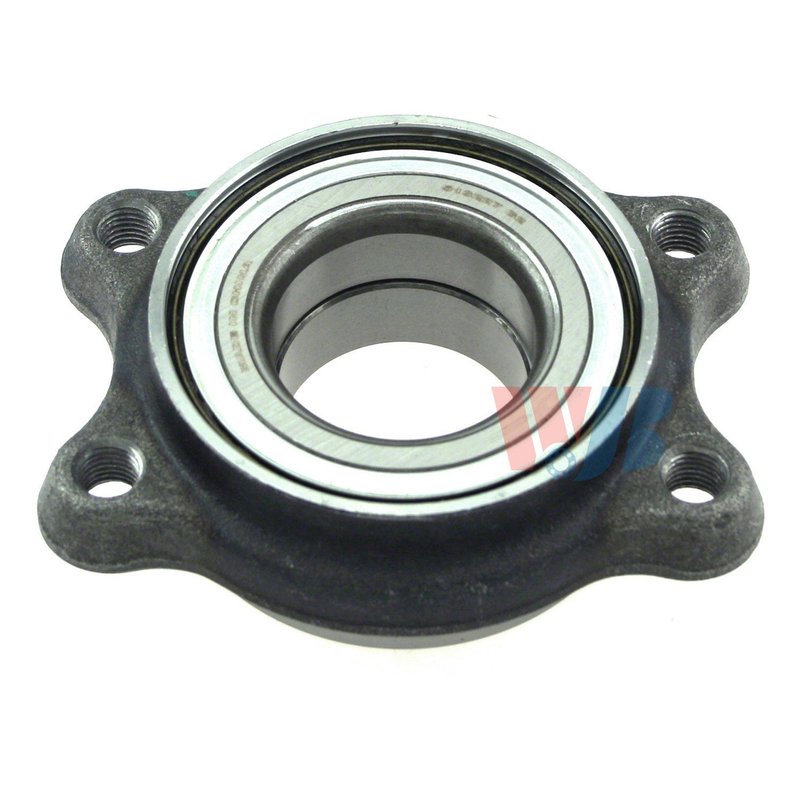

InMotion WA513227 Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Wheel Hub Assembly for Audi and Volkswagen

InMotion WA513227 is a new wheel bearing and hub assembly built for precise fitment and dependable wheel support. Engineered from OE data and measurements, it is made for direct replacement on select Audi R8, Audi A6, Audi A6 Quattro, Audi S6, Audi A8 Quattro, Audi S8, and Volkswagen Phaeton applications.

This hub assembly uses a ball bearing design, a magnetic encoder ABS ring with 96 teeth, and a 4-bolt knuckle mounting pattern. The WA513227 is configured for non-driven positions and uses an M12-1.5 lug bolt thread size.

Key Features

• New wheel bearing and hub assembly
• Ball bearing type for smooth wheel rotation
• Magnetic encoder ABS ring with 96 teeth
• Non-driven hub assembly configuration
• 4 mounting bolts to knuckle
• Hub pilot diameter: 85 mm (3.35 in)
• Hub centerbore diameter: 107.2 mm (4.22 in)
• M12-1.5 lug bolt thread size
• No ABS sensor included
• No wiring harness included

Detailed Description

InMotion WA513227 is manufactured with strict quality-control standards and built for applications that require accurate hub geometry and consistent bearing performance. The OE-based design helps maintain proper wheel location, hub alignment, and ABS signal input through the integrated magnetic encoder ring. This part number is a direct replacement option for front and rear positions listed in the fitment data, including 2014-2015 Audi R8 front, 2011-2012 Audi R8 rear, 2006-2011 Audi A6 front, 2005-2008 Audi A6 Quattro front, 2007-2011 Audi S6 rear, 2004-2010 Audi A8 Quattro rear, 2007-2009 Audi S8 rear, and 2004-2006 Volkswagen Phaeton rear. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Wheel bearing noise from a worn hub assembly
• ABS warning light caused by encoder ring signal issues
• Wheel play or looseness at the hub
• Uneven wheel rotation or vibration at speed
• Hub damage from age, corrosion, or bearing wear

Installation Notes and Tips

Verify position before installation, since WA513227 is listed for both front and rear applications depending on vehicle. Confirm the 4-bolt knuckle pattern, hub pilot diameter, centerbore diameter, and M12-1.5 lug thread size before assembly. Transfer or inspect related brake and suspension components during service, and follow factory torque specifications for the mounting bolts and wheel fasteners.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and OE-based measurements to support proper fit, performance, and service life. The part is new and produced under strict quality-control criteria for the listed Audi and Volkswagen applications.
