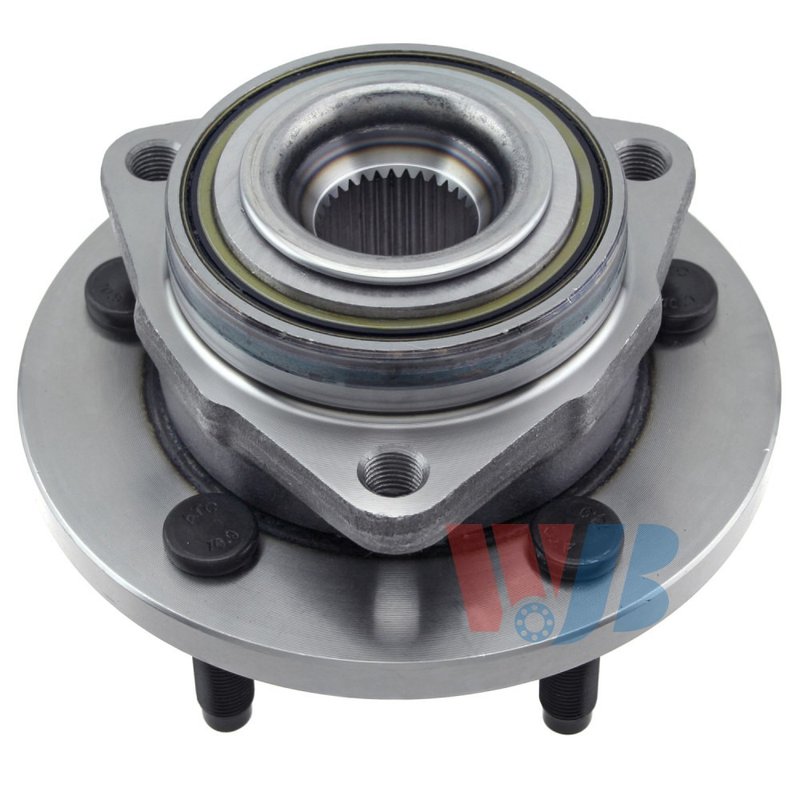

InMotion WA513228 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA513228 is a front wheel bearing and hub assembly built for direct replacement on select Dodge Dakota and Mitsubishi Raider applications. It is engineered from OE data and measurements to support proper fitment, stable wheel mounting, and long service life.

• Front wheel bearing and hub assembly for driveline and axle service
• 33-spline design with 5 wheel studs
• Triangle flange shape with 3 flange bolt holes
• Flange diameter: 183.0 mm; flange offset: 48.7 mm
• Wheel pilot diameter: 77.7 mm; brake pilot diameter: 78.4 mm
• Hub pilot diameter: 104.2 mm
• Bolt circle diameter: 139.7 mm / 5.5 in
• Anti-lock brake sensor not included

Fitment Details

Compatible With front applications on these vehicles:

• Fits 2005-2010 Dodge Dakota, front, Standard Grade
• Fits 2006-2009 Mitsubishi Raider, front, Standard Grade

Built for OE-Style Replacement

WA513228 is manufactured with high-precision processes and strict quality-control standards to match the original application using OE reference data. The hub assembly is designed for the front of 2005-2010 Dodge Dakota and 2006-2009 Mitsubishi Raider models, making it a direct replacement choice when servicing wheel bearing noise, hub wear, or mounting issues. This part number, WA513228, is a practical match for front-end driveline repair on Dodge Dakota and Mitsubishi Raider trucks.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Loose or uneven wheel mounting at the hub
• Front-end vibration related to hub wear
• Improper wheel pilot or bolt-circle alignment during replacement
• Service replacement for damaged or fatigued hub components

Installation Notes

Verify spline count, bolt circle diameter, flange offset, and pilot dimensions before installation. Because the anti-lock brake sensor is not included, confirm the vehicle’s existing ABS setup and transfer any required components from the original assembly if applicable. Always torque fasteners to factory specifications and inspect related suspension and brake parts during service.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fit and performance. Part number WA513228 is built as a direct replacement for the listed front applications.
