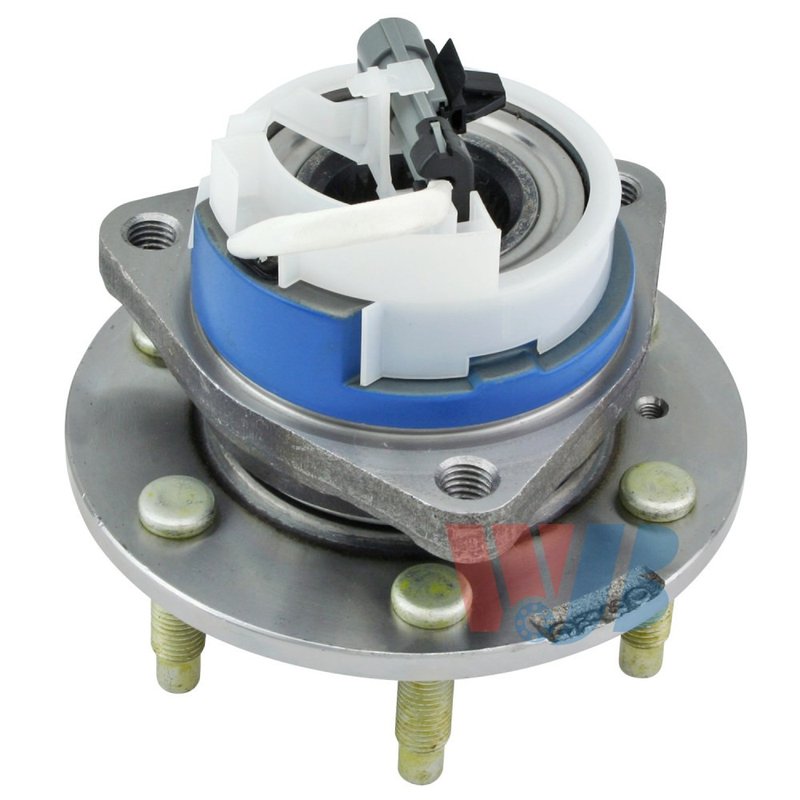

InMotion WA513236 Wheel Bearing and Hub Assembly - Front or Rear

Wheel Bearing and Hub Assembly for GM Front and Rear Applications

InMotion WA513236 is a wheel bearing and hub assembly built for specific GM fitments with OE-based measurements for accurate installation and dependable wheel support. It is engineered as a direct replacement for the original hub on select Chevrolet, Pontiac, Buick, and Saturn models.

• Wheel bearing and hub assembly for front or rear service, depending on application
• 33-spline design with 6 wheel studs
• 3 flange bolt holes and triangle flange shape
• Anti-lock brake sensor included
• Wheel pilot diameter: 70.1 mm
• Brake pilot diameter: 70.6 mm
• Hub pilot diameter: 91.4 mm
• Flange diameter: 145.5 mm
• Bolt circle diameter: 115.0 mm (4.527 in.)
• Flange offset: 42.0 mm

Fitment Details

• Fits 2007-2009 Chevrolet Uplander, front, Standard Grade
• Fits 2006-2009 Pontiac Montana, front, Standard Grade
• Fits 2006-2007 Buick Terraza, front, Standard Grade
• Fits 2006-2007 Saturn Relay, front, Standard Grade
• Fits 2006 Chevrolet Uplander, rear, Standard Grade

Product Overview

Built using high-precision manufacturing and strict quality-control standards, WA513236 is designed around OE data and measurements to match the original hub assembly dimensions and mounting points. For shoppers searching for a front wheel bearing hub assembly for 2007-2009 Chevrolet Uplander, 2006-2009 Pontiac Montana, 2006-2007 Buick Terraza, or 2006-2007 Saturn Relay, this part number WA513236 provides the specified hub, bearing, and ABS sensor configuration in one assembly.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Wheel bearing noise or rough rotation from a worn hub assembly
• ABS warning light caused by a failed hub-mounted sensor
• Wheel looseness or play at the hub
• Uneven wheel mounting caused by damaged flange or stud interface
• Vibration or noise related to hub wear on GM minivan applications

Installation Notes and Tips

Confirm the vehicle position before ordering, since WA513236 is listed for front service on most applications and rear service on the 2006 Chevrolet Uplander. Verify spline count, bolt circle, flange dimensions, and ABS sensor configuration against the original part before installation. Clean the mounting surface and inspect related brake and suspension components for wear during replacement.

Quality Assurance

InMotion manufactures this hub assembly with OE-based engineering data, precise measurements, and controlled production standards to support proper fitment and long service life. The part is built for the listed GM applications, including Chevrolet Uplander, Pontiac Montana, Buick Terraza, and Saturn Relay models.
