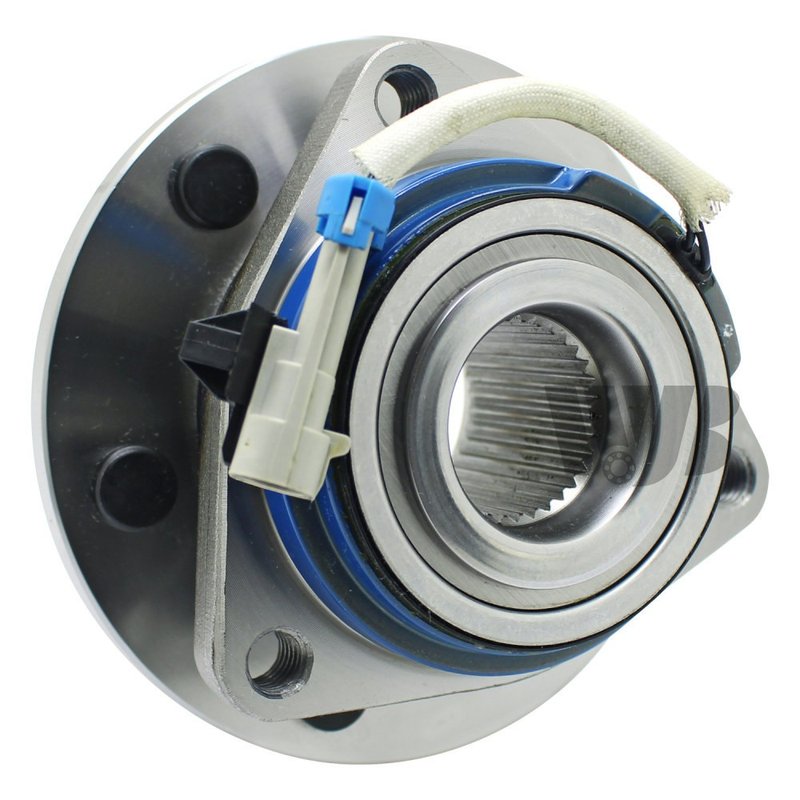

InMotion WA513236HD Wheel Bearing and Hub Assembly - Front or Rear

Wheel Bearing Hub Assembly for GM Front Applications

The InMotion WA513236HD wheel bearing and hub assembly is a direct replacement for select GM front applications that require a driven hub with integrated ABS sensing. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

Use this InMotion hub assembly for 2006-2009 Chevrolet Uplander front, 2006-2009 Pontiac Montana front, 2006-2007 Buick Terraza front, and 2007 Saturn Relay front. It also fits 2006 Saturn Relay rear.

Key Features

• Part number WA513236HD wheel bearing and hub assembly
• Driven hub design with 33 splines
• Ball bearing construction
• Integrated ABS sensor, tone ring, and wiring harness included
• 6-bolt flange with M12-1.5 thread size
• 3-bolt knuckle mounting pattern
• Hub pilot diameter: 70.6 mm (2.78 in)
• Flange diameter: 145.5 mm (5.73 in)
• Flange offset: 42 mm (1.65 in)
• Hub centerbore diameter: 115 mm (4.53 in)

Detailed Description

InMotion WA513236HD is manufactured as a new wheel bearing and hub assembly for vehicles that use a driven hub with ABS integration. The assembly is built with precision manufacturing and strict quality-control standards, and it is designed from OE data to match the original application’s dimensions and performance requirements. The 33-spline driven design, ball bearing type, and integrated tone ring support accurate wheel rotation and ABS signal operation in the specified GM front and rear positions.

This part cross-references SKF BR930627 and Timken HA590157 for the same application. For shoppers searching for a Chevrolet Uplander front wheel bearing hub assembly, Pontiac Montana front hub assembly, or Buick Terraza front hub replacement, WA513236HD provides the specified fitment and hardware configuration.

Common Problems This Part Can Address

• Wheel bearing noise from a worn hub assembly
• ABS warning light caused by a failed integrated sensor or tone ring
• Wheel play or looseness from hub wear
• Uneven wheel rotation caused by bearing deterioration
• Driveline engagement issues on driven hub applications

Installation Notes and Tips

Confirm the vehicle position before ordering, since this part fits front applications on most listed models and rear on 2006 Saturn Relay. Verify spline count, flange bolt pattern, and ABS connector shape against the original hub before installation. Clean the knuckle mounting surface, inspect the axle and surrounding components for wear, and torque all fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support correct fitment and consistent performance in the listed Chevrolet, Pontiac, Buick, and Saturn applications.
