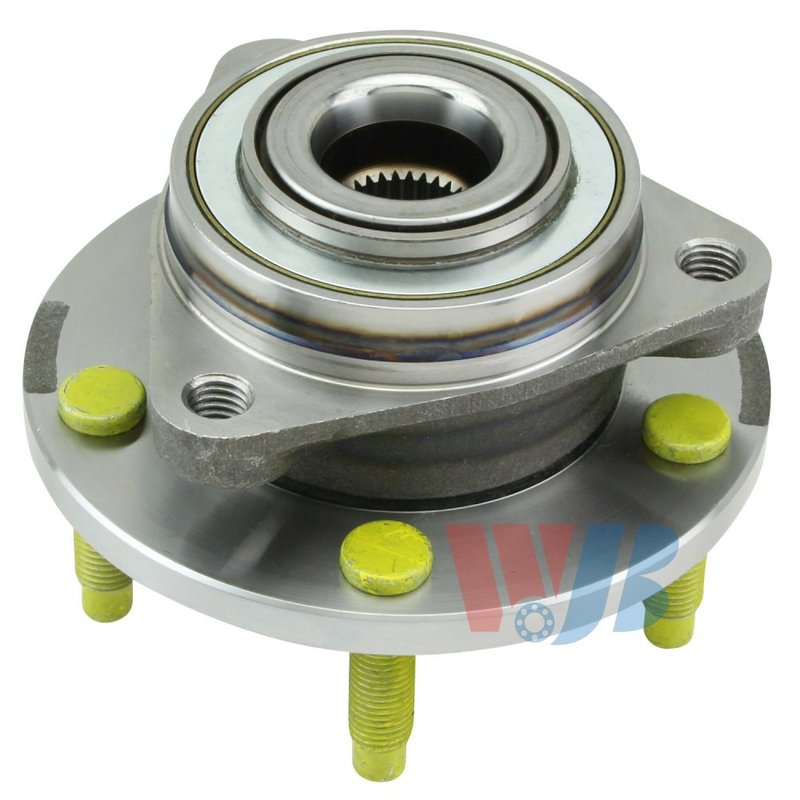

InMotion WA513237 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Chevrolet HHR

InMotion WA513237 is a front wheel bearing and hub assembly built for 2006-2008 Chevrolet HHR Standard Grade applications. It is engineered from OE data and measurements to match the original fit, with hub dimensions and bolt pattern details that support accurate replacement service.

Key Features

• Direct replacement front hub assembly for 2006-2008 Chevrolet HHR
• 33-spline design with 5 wheel studs
• 3 flange bolt holes and modified flange shape
• Wheel pilot diameter: 65.0 mm
• Brake pilot diameter: 65.4 mm
• Hub pilot diameter: 83.0 mm
• Flange diameter: 137.0 mm
• Bolt circle diameter: 110.0 mm (4.33 in.)
• Flange offset: 38.9 mm
• ABS sensor not included

Detailed Description

Built for front-end service on the Chevrolet HHR, part number WA513237 is manufactured with strict quality-control criteria and high-precision production methods. The assembly is designed around OE specifications so the hub, pilot diameters, flange geometry, and stud layout align with the original application. For buyers searching for a front wheel bearing and hub assembly for 2006, 2007, or 2008 Chevrolet HHR models, WA513237 provides a direct-replacement solution for Standard Grade vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Uses

• Front wheel bearing noise or rough rotation
• Loose or worn hub assembly at the front axle
• Wheel stud or flange wear on the front hub
• Incorrect fitment after prior hub replacement
• Restoring proper wheel mounting geometry on a Chevrolet HHR

Installation Notes and Tips

Confirm the vehicle is a 2006-2008 Chevrolet HHR, front position, before ordering. Verify spline count, bolt circle diameter, and pilot dimensions against the original part to ensure correct installation. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle configuration requires it. Always inspect related components such as the axle nut, knuckle, and brake hardware during hub replacement.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support proper fitment, performance, and service life. Part number WA513237 is built as a direct replacement for the listed Chevrolet HHR applications.
