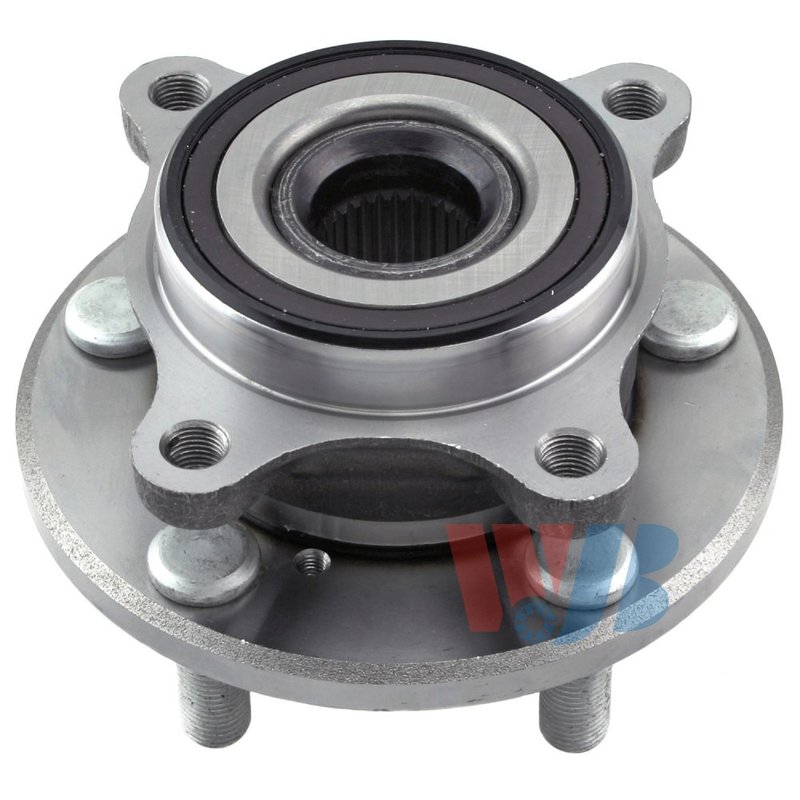

InMotion WA513252 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Acura RL

InMotion WA513252 is a front wheel bearing and hub assembly built for 2005-2012 Acura RL models. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration needed for a precise front-end repair.

For Acura RL front hub service, WA513252 provides the correct bolt pattern, pilot dimensions, and sensor setup for the listed application. The result is a replacement part designed around the original vehicle specifications, including 5 wheel studs and a 30-spline design.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 2005-2012 Acura RL, front
• 30-spline hub design
• 5 wheel studs with 4 flange bolt holes
• ABS sensor included for vehicles equipped with wheel speed sensing at the hub
• OE-based dimensions for fitment, performance, and service life
• Flange shape: offset, with 60.9 flange offset
• Flange diameter: 152.5 mm; bolt circle diameter: 120.0 mm (4.724 in)
• Wheel pilot diameter: 64.0 mm; brake pilot diameter: 70.0 mm; hub pilot diameter: 81.6 mm

Detailed Description

InMotion part number WA513252 is a front wheel bearing and hub assembly for the 2005-2012 Acura RL. It is manufactured using high-precision processes and strict quality-control criteria, with engineering based on OE data and measurements to match the original front hub assembly dimensions. This helps ensure proper wheel mounting, brake interface alignment, and ABS sensor integration on the specified Acura RL applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Front wheel bearing noise, humming, or growling
• Wheel play or looseness at the hub
• ABS warning light related to hub-mounted sensor issues
• Uneven wheel rotation or vibration from a worn front hub assembly
• Brake or wheel mounting concerns caused by hub wear

Installation Notes and Tips

Confirm front-position fitment before ordering and verify the 30-spline, 5-stud, 4-bolt flange configuration against the original part. Inspect the mating surfaces, axle interface, and brake components during installation, and torque all fasteners to the vehicle manufacturer’s specifications. Because the ABS sensor is included, make sure the connector and routing match the original setup on your Acura RL.

Quality Assurance

WA513252 is built to OE-based measurements and manufactured under strict quality-control criteria for consistent fit and function. InMotion designs this wheel bearing and hub assembly as a direct replacement for the original front hub on the listed Acura RL models.
