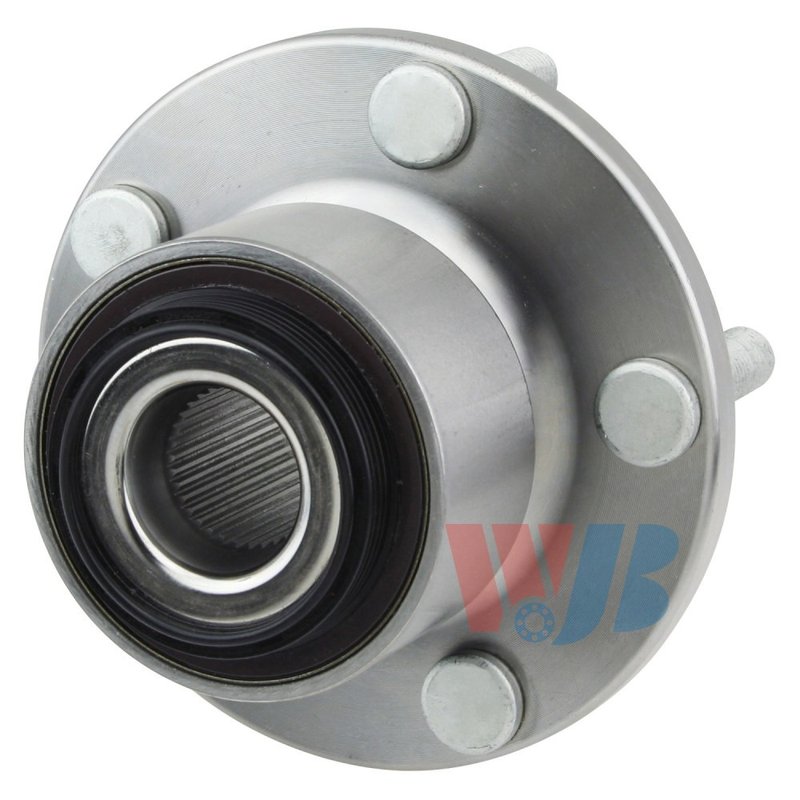

InMotion WA513255 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Volvo

The InMotion WA513255 wheel bearing and hub assembly is a front replacement part engineered for precise fitment and dependable wheel support. Built from OE data and measurements, it is made for select Volvo C30, C70, S40, and V50 applications with integrated ABS sensor coverage.

• Front wheel bearing and hub assembly
• 36-spline design
• 5 wheel studs
• Anti-lock brake sensor included
• Wheel pilot diameter: 63.2 mm
• Brake pilot diameter: 63.4 mm
• Hub pilot diameter: 78.0 mm
• Flange diameter: 131.4 mm
• Bolt circle diameter: 108.0 mm

Fitment Details

• Fits 2007-2013 Volvo C30, front, Standard Grade
• Fits 2006-2013 Volvo C70, front, Standard Grade
• Fits 2005-2011 Volvo S40, front, Standard Grade
• Fits 2005-2011 Volvo V50, front, Standard Grade

Product Overview

InMotion part number WA513255 is a direct replacement wheel hub assembly for the front axle on select Volvo models. The assembly is manufactured with tight quality-control standards and built to match original dimensions for proper wheel mounting, bearing support, and ABS sensor integration. For shoppers searching for a front wheel bearing and hub assembly for 2005-2011 Volvo S40 or 2005-2011 Volvo V50, WA513255 provides the key OE-style measurements needed for accurate service replacement. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Wheel bearing noise from the front end
• Excessive wheel play or looseness
• ABS warning light related to hub sensor function
• Uneven rotor or wheel mounting issues
• Vibration or rough rotation at the hub

Installation Notes

Confirm the vehicle’s year, model, and front position before ordering. Match the spline count, bolt circle diameter, and pilot dimensions to the original hub assembly during installation. Because the ABS sensor is included, inspect the connector and wiring path during replacement to ensure proper system operation on Volvo C30, C70, S40, and V50 applications.

Quality Assurance

InMotion manufactures this hub assembly using OE data and dimensional measurements, with strict quality-control criteria applied throughout production. The result is a front wheel bearing and hub assembly built for accurate fitment, stable performance, and long service life on the listed Volvo applications.
