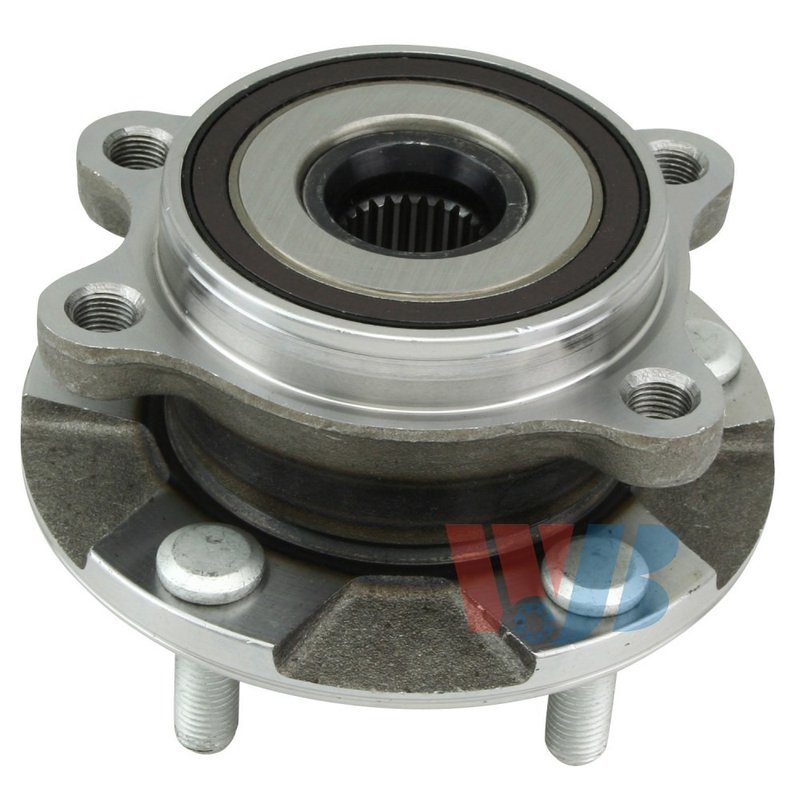

InMotion WA513257 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Toyota and Scion

The InMotion WA513257 wheel bearing and hub assembly is a direct replacement front hub built for select Toyota, Scion, and Lexus applications. It is engineered from OE data and measurements to match the original fit, performance, and service life requirements for the listed vehicles.

• Front wheel bearing and hub assembly for select 2006-2018 applications
• 26-spline design
• 5 wheel studs
• 4 flange bolt holes
• ABS sensor included
• Modified flange shape with 47.5 flange offset
• Bolt circle diameter: 114.3 mm / 4.5 in
• Flange diameter: 139.0 mm
• Hub pilot diameter: 90.0 mm
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm

Fitment Details

• Fits 2017-2018 Toyota Corolla iM, front, Standard Grade
• Fits 2012-2018 Toyota Prius V, front, Standard Grade
• Fits 2016 Scion iM, front, Standard Grade
• Fits 2011-2016 Scion tC, front, Standard Grade
• Fits 2008-2015 Scion xB, front, Standard Grade
• Fits 2010-2012 Lexus HS250h, front, Standard Grade
• Fits 2006-2012 Toyota RAV4, front, Standard Grade

Product Description

Use the InMotion WA513257 when replacing a worn front hub on a Toyota RAV4, Scion tC, Scion xB, Prius V, Corolla iM, Scion iM, or Lexus HS250h listed above. This hub assembly is manufactured with strict quality-control standards and built for direct OE-style replacement, helping restore proper wheel support, hub alignment, and ABS signal function on the front axle.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness from hub wear
• Vibration or play at the front wheel end
• Improper wheel mounting due to damaged studs or hub flange wear

Installation Notes and Tips

Confirm the vehicle’s front application, bolt pattern, spline count, and sensor configuration before installation. The WA513257 is built for the listed standard-grade front fitments and should be matched to the original hub dimensions and ABS setup during service.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support correct fitment and dependable service on the specified vehicles.
