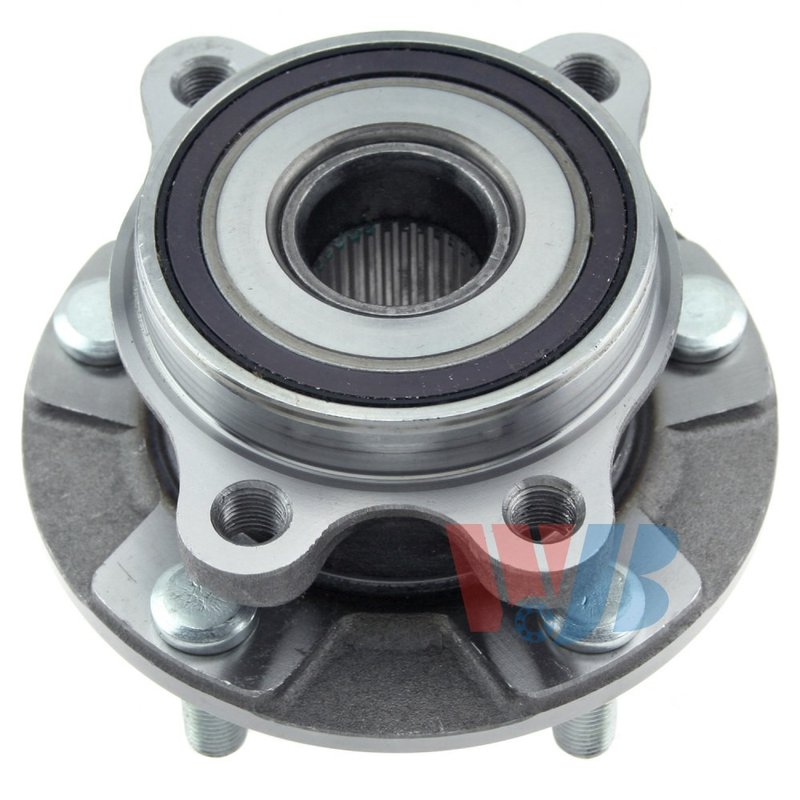

InMotion WA513258 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Toyota and Scion

InMotion WA513258 is a front wheel bearing and hub assembly built for direct replacement service on select Toyota and Scion applications. It is engineered from OE data and measurements for fitment, performance, and service life, with an integrated ABS sensor included.

• Front wheel bearing and hub assembly
• 30-spline design with 5 wheel studs
• 4 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Hub pilot diameter: 90.0 mm
• Bolt circle diameter: 114.3 mm / 4.5 in
• Flange diameter: 139.0 mm
• Flange offset: 47.5 mm
• Modified flange shape

Fitment Details

• Fits 2016-2020 Toyota Mirai, front, Standard Grade
• Fits 2006-2018 Toyota RAV4, front, Standard Grade
• Fits 2011-2016 Scion tC, front, Standard Grade

Product Overview

This InMotion wheel bearing and hub assembly, part number WA513258, is built for front-end service where a worn hub can affect wheel support, ABS signal function, and wheel mounting accuracy. The assembly is specified for Toyota Mirai, Toyota RAV4, and Scion tC front applications, including 2006-2018 Toyota RAV4 front and 2011-2016 Scion tC front coverage. The OE-based dimensions and controlled manufacturing process help maintain proper alignment at the hub, while the included ABS sensor supports vehicles that rely on integrated wheel speed sensing. This part number WA513258 is a direct replacement style solution for standard grade front hub service.

Common Repair Symptoms

• Wheel bearing noise from the front hub area
• ABS warning light related to hub-mounted sensor issues
• Excessive wheel play or looseness at the hub
• Uneven rotor or wheel mounting contact at the hub face
• Vibration or roughness traced to a worn front bearing assembly

Installation Notes

Confirm the vehicle’s front application, bolt pattern, spline count, and sensor configuration before installation. Clean the mounting surface thoroughly, inspect the axle and knuckle for wear, and torque all fasteners to the vehicle manufacturer’s specifications. Because this assembly includes an ABS sensor, verify connector routing and scan for fault codes after installation. For Toyota RAV4, Scion tC, and Toyota Mirai front hub replacement work, matching the OE dimensions is important for proper seating and wheel fitment.

Quality Assurance

InMotion manufactures these hub assemblies using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support correct fitment and long-term service in the listed front applications.
