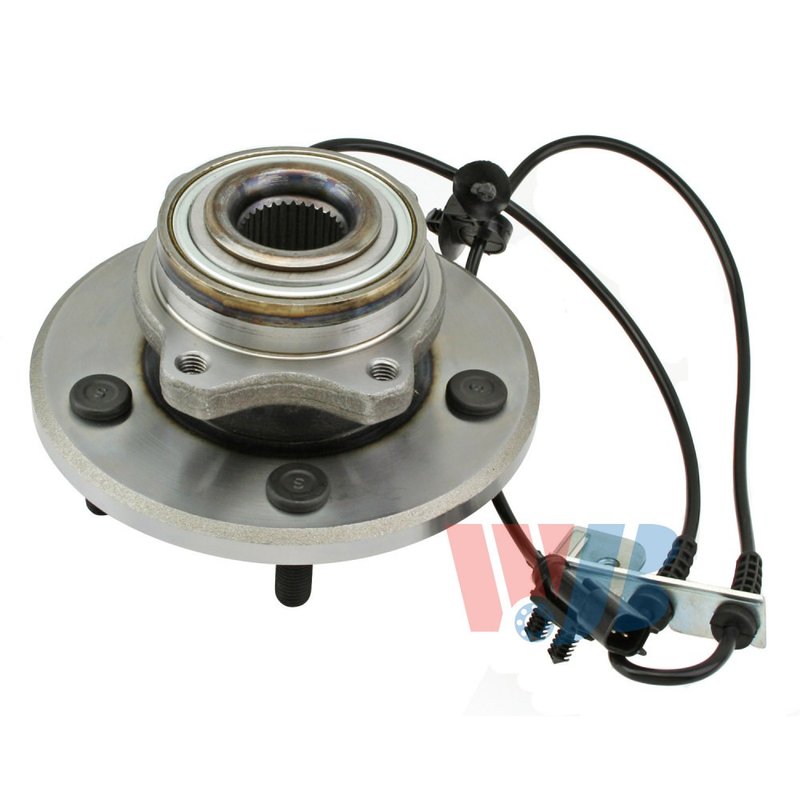

InMotion WA513261 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Pacifica

InMotion WA513261 is a front wheel bearing and hub assembly built for 2007-2008 Chrysler Pacifica models with standard grade fitment. It is engineered from OE data and measurements to match the original application, with a 32-spline design, 5 wheel studs, and an integrated ABS sensor.

Key Features

• Direct replacement front hub assembly for 2007-2008 Chrysler Pacifica
• 32 spline quantity with 5 wheel studs
• 4 flange bolt holes and modified flange shape
• ABS sensor included for vehicles equipped with wheel speed sensing
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 81.9 mm
• Hub pilot diameter: 85.0 mm
• Bolt circle diameter: 127.0 mm
• Flange diameter: 167.5 mm and flange offset: 48.5 mm

Detailed Description

InMotion WA513261 is a front wheel bearing and hub assembly for Chrysler Pacifica applications that require a standard grade front replacement. Built with precision manufacturing and strict quality-control criteria, this hub assembly is designed to match OE dimensions for proper fitment, smooth wheel support, and long service life. The integrated ABS sensor helps maintain wheel speed signal function, while the OE-based measurements support accurate alignment with the brake and wheel mounting surfaces. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Wheel bearing noise from a worn front hub assembly
• ABS warning light caused by a failed wheel speed sensor or hub signal issue
• Front wheel looseness or play at the hub
• Uneven wheel mounting caused by damaged hub surfaces
• Vibration or rough rotation from bearing wear

Installation Notes and Tips

Fits 2007-2008 Chrysler Pacifica, front. Confirm spline count, bolt circle diameter, and pilot dimensions before installation. Clean the mounting surface, inspect the axle and brake components, and verify ABS connector routing and sensor alignment during replacement. WA513261 should be matched to the vehicle’s front hub specification before assembly.

Quality Assurance

InMotion manufactures this wheel bearing and hub assembly using high-precision processes and strict quality-control standards. OE data and measurements are used to support correct fitment, performance, and durability for the designated Chrysler Pacifica application.
