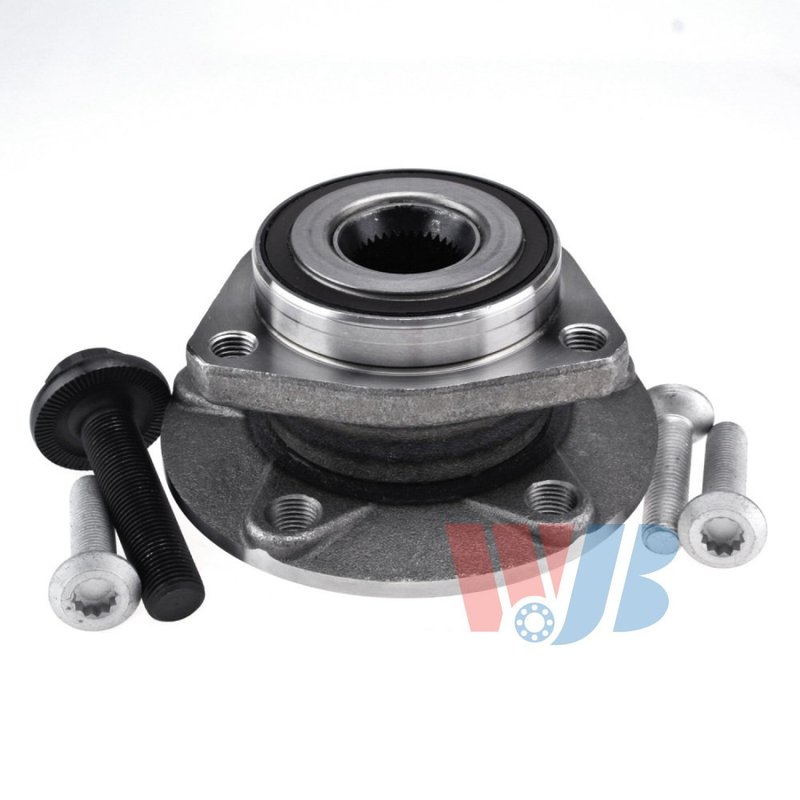

InMotion WA513262 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for VW and Audi

InMotion WA513262 is a front wheel bearing and hub assembly built for select Volkswagen and Audi applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality-control standards aimed at consistent wheel support, braking alignment, and sensor operation.

• Front wheel bearing and hub assembly for select Volkswagen Golf, Golf SportWagen, GTI, e-Golf, Golf Alltrack, Golf City, Eos, and Audi A3/S3 applications
• 36-spline design with 5 wheel studs
• 3 flange bolt holes and modified flange shape
• 80.0 mm hub pilot diameter, 57.0 mm wheel pilot diameter, and 65.0 mm brake pilot diameter
• 136.5 mm flange diameter with 48.0 mm flange offset
• ABS sensor included

Fitment Details

Compatible With select front applications, including Fits 2018-2021 Volkswagen Golf, Front, with 80 (mm) Outside Diameter; Fits 2015-2020 Audi A3, Front, Standard Grade; Fits 2006-2013 Audi A3, Front, Standard Grade; Fits 2020 Audi S3, Front, with 80 (mm) Outside Diameter; Fits 2015-2019 Volkswagen e-Golf, Front, Standard Grade; Fits 2018-2019 Volkswagen Golf SportWagen, Front, with 80 (mm) Outside Diameter; Fits 2014-2017 Volkswagen Golf, Front, Standard Grade; Fits 2006 Volkswagen Golf, Front, Standard Grade; Fits 2017 Volkswagen Golf Alltrack, Front, Standard Grade; Fits 2017 Volkswagen Golf R, Front, Standard Grade; Fits 2015-2017 Volkswagen Golf SportWagen, Front, Standard Grade; Fits 2007-2016 Volkswagen Eos, Front, Standard Grade; Fits 2007-2009 Volkswagen Golf City, Front, Standard Grade; and Fits 2006-2009 Volkswagen GTI, Front, Standard Grade.

What This Part Helps Address

• Front wheel bearing noise or rough rotation
• Wheel hub play that can affect steering feel
• ABS warning light concerns tied to hub sensor function
• Uneven wheel mounting or stud-related fitment issues
• Brake and wheel alignment problems caused by worn hub components

Installation Notes and Tips

Verify the vehicle’s front hub dimensions, spline count, bolt pattern, and ABS sensor configuration before installation. This part number, WA513262, is intended for the listed front applications and should be matched to the vehicle’s exact trim and hub specification, including 80 mm outside diameter notes where shown. Professional installation and proper torque procedures are recommended for wheel-bearing and hub service.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support accurate fitment and long service life. WA513262 is built as a direct replacement for the original front wheel bearing and hub assembly on the listed Volkswagen and Audi models.
