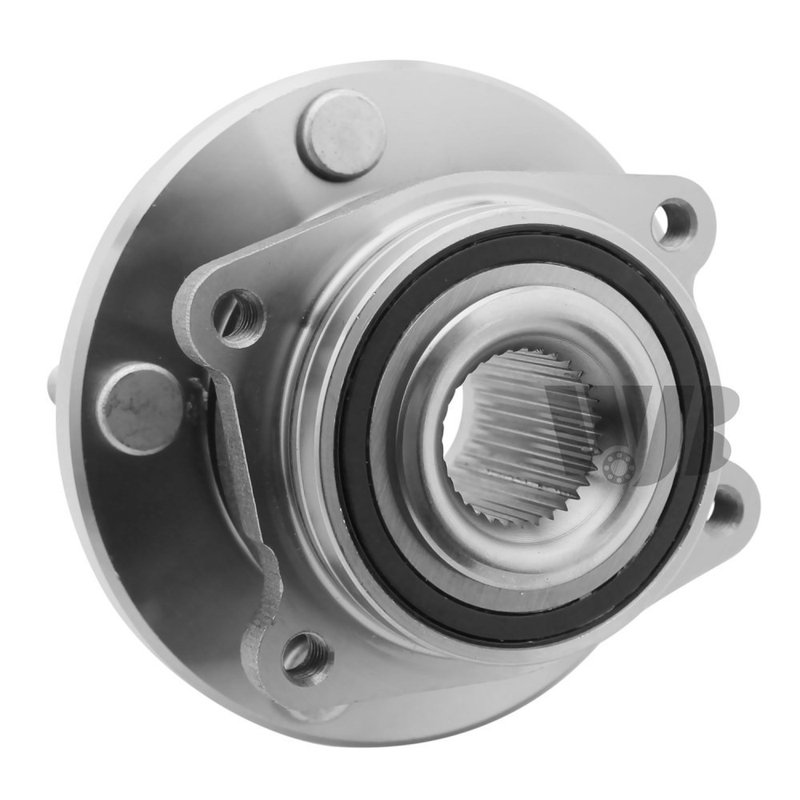

InMotion WA513263HD Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Chrysler and Dodge

The InMotion WA513263HD wheel bearing and hub assembly is a direct replacement front hub for select Chrysler and Dodge vehicles. Built from OE data and measurements, it is engineered for precise fitment, stable wheel support, and long service life on driven front applications.

• Front wheel bearing and hub assembly for driven applications
• 32-spline design
• Ball bearing type
• Magnetic encoder ABS ring with 86 teeth
• 5-bolt flange with M12-1.5 thread size
• 4-bolt knuckle mounting pattern
• Hub pilot diameter: 69 mm (2.72 in)
• Hub centerbore diameter: 114.3 mm (4.5 in)
• Flange diameter: 141.3 mm (5.56 in)
• Flange offset: 48.5 mm (1.91 in)
• New part, not remanufactured

OE-Style Fit and Construction

InMotion manufactures the WA513263HD with strict quality-control standards and application-specific dimensions for a direct OE-style replacement. This front wheel bearing and hub assembly is built for 2011-2014 Chrysler 200 front, 2008-2014 Dodge Avenger front, and 2007-2010 Chrysler Sebring front. It cross-references Timken HA590219 and SKF BR930711 for the same application. The design uses a magnetic encoder ABS ring, ball bearing construction, and the correct spline count to match the original driveline and wheel-end setup.

Vehicle Fitment

• Fits 2011-2014 Chrysler 200, front, Premium Grade
• Fits 2008-2014 Dodge Avenger, front, Premium Grade
• Fits 2007-2010 Chrysler Sebring, front, Premium Grade

Common Problems This Part Can Address

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness
• ABS warning light caused by a failing encoder ring
• Uneven wheel rotation or rough hub operation
• Vibration or humming from a worn front hub assembly

Installation Notes

Verify spline count, flange bolt pattern, hub pilot diameter, and ABS encoder style before installation. This assembly does not include an ABS sensor, wiring harness, or lug bolts. Confirm the vehicle uses a driven front hub configuration and match the mounting points to the original part before service.

Quality Assurance

Each WA513263HD hub assembly is produced using OE reference data and measured for application-specific fitment, performance, and durability. InMotion applies strict quality-control criteria during manufacturing to help ensure consistent wheel-end operation on Chrysler 200, Dodge Avenger, and Chrysler Sebring front applications.
