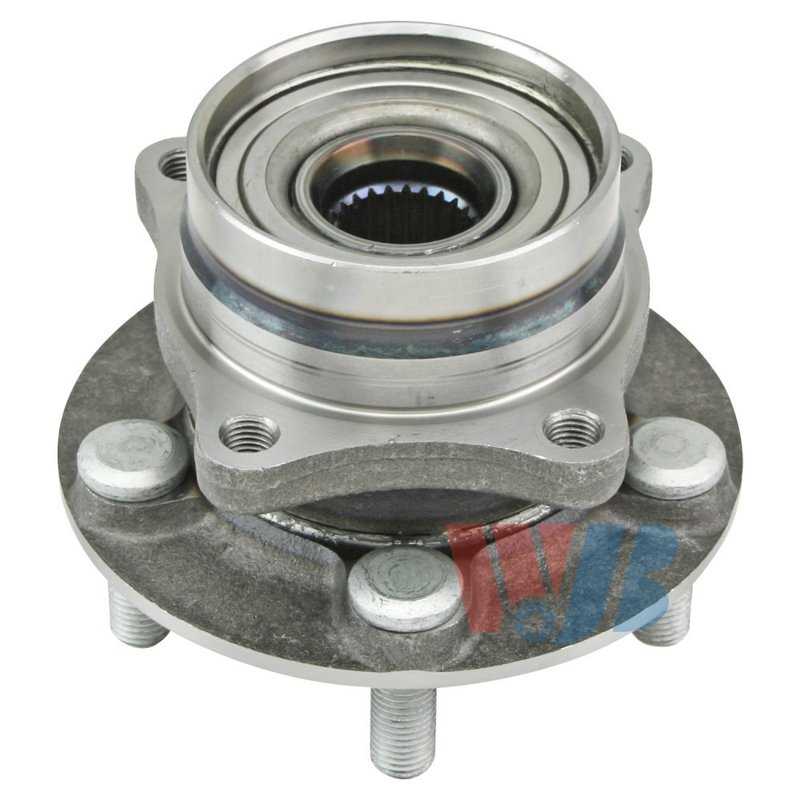

InMotion WA513265 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub for Prius

InMotion WA513265 is a front wheel bearing and hub assembly built for 2004-2009 Toyota Prius Standard Grade applications. It is engineered from OE data and measurements to match the original fit, with the hub dimensions and bolt pattern needed for a direct replacement on the front axle.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 2004-2009 Toyota Prius, front
• 26-spline hub design
• 5 wheel studs with a 100 mm bolt circle diameter
• 4 flange bolt holes and modified flange shape
• Hub pilot diameter: 78.0 mm
• Wheel pilot diameter: 54.0 mm
• Brake pilot diameter: 55.0 mm
• Flange offset: 42.0 mm
• ABS sensor not included

Detailed Description

The InMotion WA513265 wheel bearing and hub assembly is manufactured with precision controls and application-specific measurements for the Toyota Prius. This front hub assembly is built to match OE fitment requirements, including the 5-stud wheel mounting pattern, 100 mm bolt circle, and the specified pilot diameters for proper wheel and brake interface. For drivers searching for a front wheel bearing hub assembly for 2004-2009 Toyota Prius, WA513265 provides a direct replacement format that follows the original part geometry.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Wheel bearing noise from the front hub area
• Excessive play or looseness at the wheel end
• Vibration related to worn hub components
• Improper wheel mounting caused by damaged hub surfaces
• Brake and wheel fitment issues tied to a worn front hub assembly

Installation Notes and Tips

Confirm the vehicle is a 2004-2009 Toyota Prius, front application before ordering. Match the spline count, bolt circle diameter, pilot diameters, and flange dimensions against the original part to verify fitment. Because the ABS sensor is not included, reuse or transfer the existing sensor only if the vehicle configuration requires it and the original component is serviceable.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support correct fitment and consistent performance. WA513265 is built as a direct replacement for the designated Prius front application.
