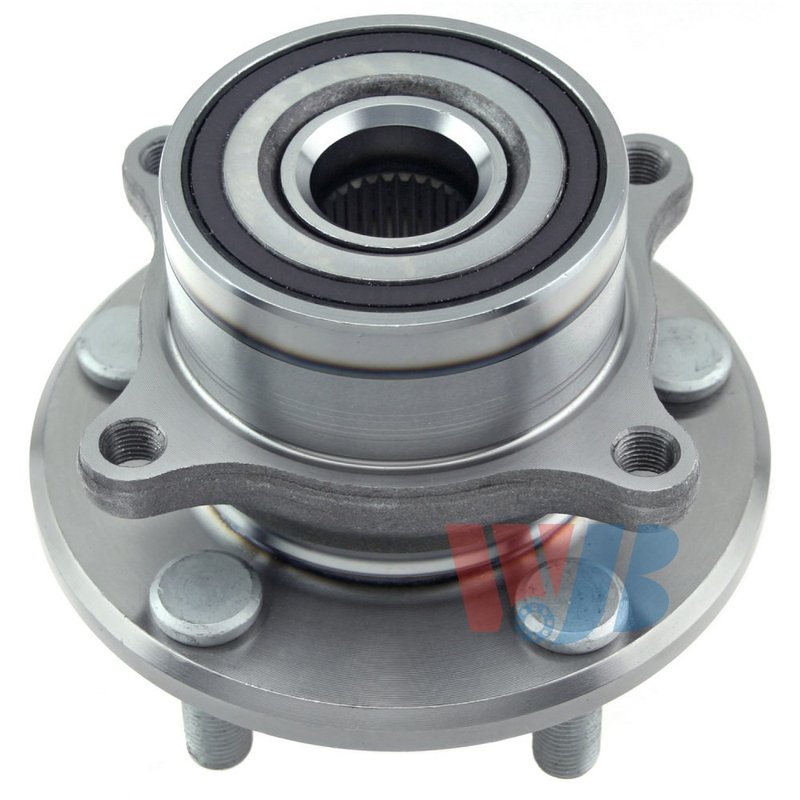

InMotion WA513267 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA513267 is a front wheel bearing and hub assembly built for direct replacement on select Honda and Acura vehicles. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

Compatible with 2009-2015 Honda Pilot, front; 2007-2013 Acura MDX, front; and 2010-2013 Acura ZDX, front, this hub assembly is designed for standard-grade applications where precise wheel mounting and ABS sensor integration matter.

Key Features

• Part number: WA513267
• Front wheel bearing and hub assembly
• 30-spline design
• 5 wheel studs
• 4 flange bolt holes
• ABS sensor included
• Modified flange shape
• OE-data-based dimensions for fit and alignment
• Wheel pilot diameter: 64.0 mm
• Brake pilot diameter: 70.0 mm
• Hub pilot diameter: 88.7 mm
• Flange diameter: 152.0 mm
• Bolt circle diameter: 120.0 mm / 4.724 in
• Flange offset: 47.2 mm

Detailed Description

InMotion WA513267 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions for the listed vehicles. The assembly is built for the front position and includes an ABS sensor, making it a direct-fit solution for drivers servicing a Honda Pilot front hub assembly, Acura MDX front wheel bearing and hub assembly, or Acura ZDX front hub replacement. The OE-based engineering helps maintain proper wheel mounting geometry, bearing support, and sensor compatibility.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Wheel bearing noise from the front end
• Excessive wheel play or looseness
• ABS warning light related to hub sensor failure
• Uneven wheel mounting or vibration at speed
• Damaged or worn front hub assembly on the listed Honda and Acura models

Installation Notes and Tips

Confirm front-position fitment before installation and verify the spline count, bolt pattern, and pilot diameters against the original part. Because this assembly includes an ABS sensor, inspect the connector and wiring path during replacement and clear any stored fault codes after installation. Always torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fitment and performance on the listed applications.
