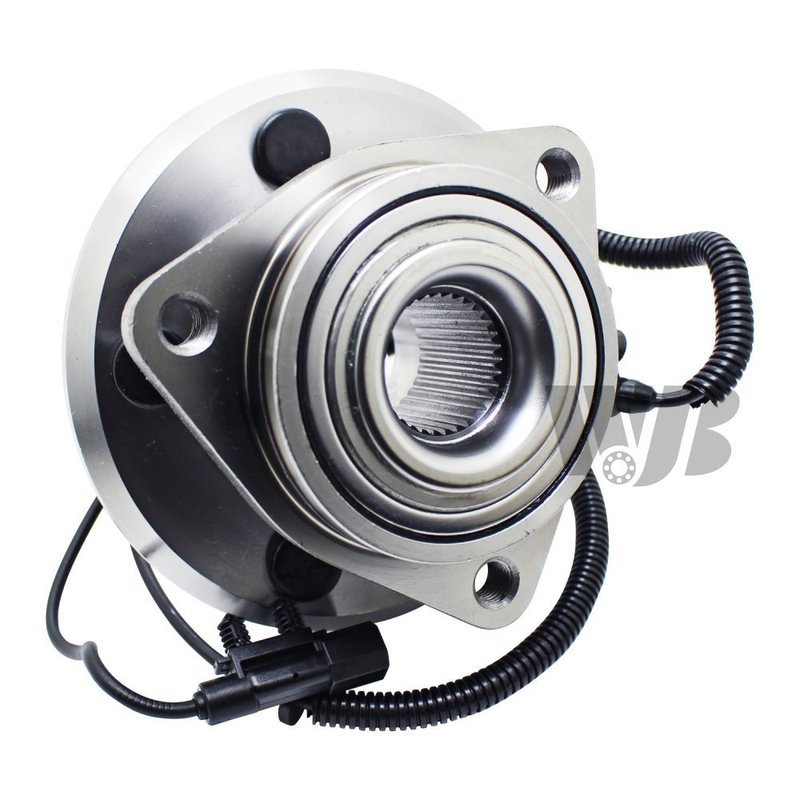

InMotion WA513270HD Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Jeep Liberty and Dodge Nitro

InMotion WA513270HD is a new front wheel bearing and hub assembly built for direct replacement service on select Jeep Liberty and Dodge Nitro applications. It combines OE-based fitment data with a ball bearing design, integrated ABS sensor, and a preinstalled wiring harness for a precise front-end driveline repair.

Key Features

• Direct replacement wheel bearing and hub assembly
• Fits driven front applications
• Ball bearing construction
• Integrated ABS sensor with tone ring
• 32-spline hub design
• 5-bolt flange with 3 knuckle mounting bolts
• Hub pilot diameter: 71.93 mm (2.83 in)
• Flange diameter: 154.3 mm (6.07 in)
• Flange offset: 48.6 mm (1.91 in)
• Wiring harness included, 37 in length

Detailed Description

Built from OE data and measurements, this InMotion hub assembly is engineered for accurate fitment, stable performance, and long service life. The unit is designed as a direct replacement for the original front hub on 2008-2012 Jeep Liberty and 2007-2011 Dodge Nitro models, making it a practical choice for front wheel bearing and hub service. Part number WA513270HD is also referenced in OE-style replacement catalogs for the same application.

Additional specifications include a 1/2"-20 flange bolt thread size, M12-1.5 lug bolt thread size, 114.3 mm hub centerbore diameter, and a 52-tooth ABS tone ring. The assembly is new, uses a circular flange shape, and includes the ABS sensor and wiring harness needed for the integrated wheel speed signal setup.

Vehicle Fitment

• Fits 2008-2012 Jeep Liberty, front.
• Fits 2007-2011 Dodge Nitro, front.

What This Part Helps Fix

• Front wheel bearing noise or growling
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness or hub play at the front axle
• Uneven front-end rotation from worn bearing components
• Hub replacement needs after corrosion or sensor failure

Installation Notes and Tips

Confirm front-position fitment before ordering and match the existing hub dimensions, spline count, and ABS connector style to the original unit. Inspect the knuckle mounting points, axle interface, and wiring routing during installation. For best results, torque all fasteners to the vehicle manufacturer’s specifications and verify ABS operation after installation.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria using high-precision production methods. Each WA513270HD unit is built to match the designated application and is intended as an OE-style replacement for the original front wheel hub assembly.
